Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle
Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle
SKU:WIR-8d069c
Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle - Durable, Heat Treated, and Safety Compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle
$89.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

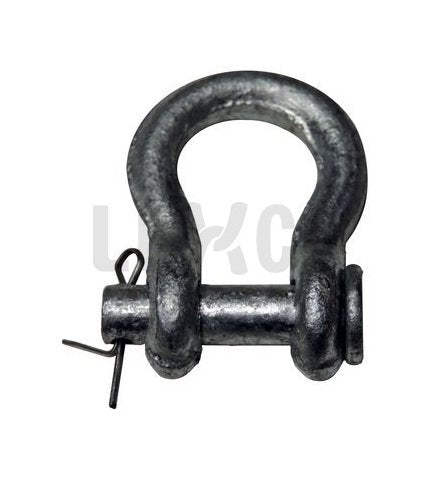

The Chicago Hardware Drop Forged Round Pin Self Colored Anchor Shackle offers exceptional durability and reliability for lifting and towing applications. This shackle is heat treated and marked with size, working load limit, and trademark for easy identification. Compliant with Federal Specifications RR-C-271D Type IVA, it meets safety standards for institutional procurement. With a working load limit of 3/4 tons, this shackle is ideal for heavy-duty use.

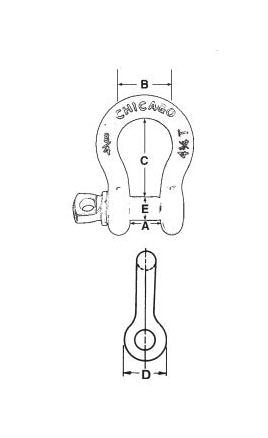

Product Specifications
Specifications Length C
1-1/4"
Specifications Length Tolerance
1/16"
Specifications Od Eyes D
7/8"
Specifications Pin Or Bolt Diameter E
3/8"
Specifications Size Dia
5/16"
Specifications Width Bow B
15/16"
Specifications Width Eyes A
17/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
3/4
Specifications Wt Per 100 Pcs Lbs
22
CAGE
0T9L4
NAICS
332999
PSC
5340
