Chicago Hardware Drop Forged Round Pin Shackle
Chicago Hardware Drop Forged Round Pin Shackle
SKU:WIR-80c0ed
Chicago Hardware Drop Forged Round Pin Shackle - 1-1/2 Ton WLL, USA Made, High Strength
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Chicago Hardware Drop Forged Round Pin Shackle
$99.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Drop Forged Round Pin Shackle
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

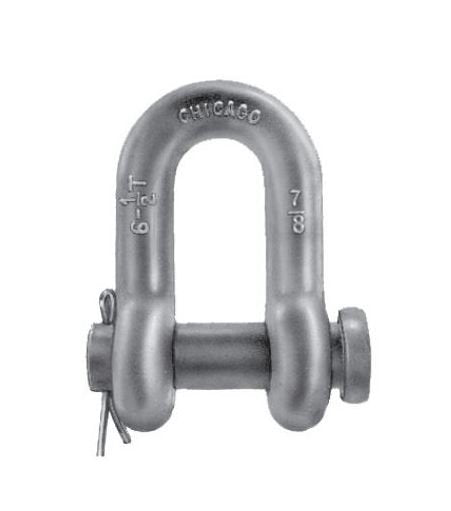

The Round Pin Self Colored from Chicago Hardware is a high-quality drop forged shackle designed for superior performance. With a Diameter of 7/16", Working Load Limit of 1-1/2 Ton, and a Pin Diameter of 1/2", this shackle ensures strength and durability in every use. Manufactured in the USA by Chicago Hardware & Fixture Company, this shackle meets stringent quality standards for reliability in wire rope applications.

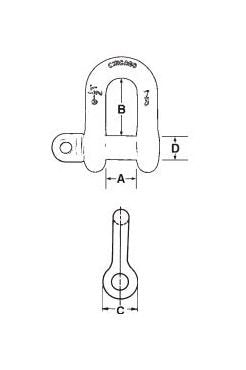

Product Specifications
Specifications Od Eyes C
1-1/8"
Specifications Pin Or Bolt Diameter D
1/2"
Specifications Size Dia
7/16"
Specifications Width Eyes A
23/32"
Specifications Wll
1-1/2 Ton
Specifications Wt Per 100 Pcs Lbs
45.5
CAGE
0T9L4
NAICS
332999
PSC
5340
