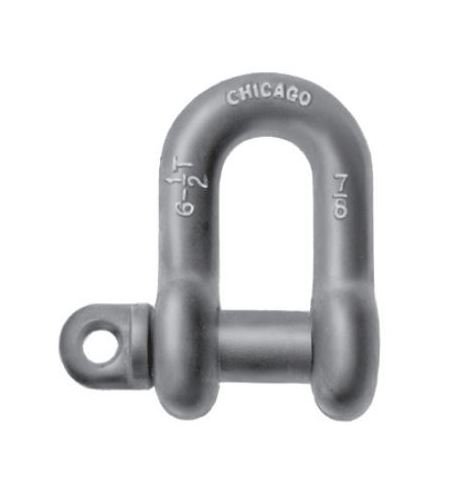

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle
Chicago Hardware Drop Forged Screw Pin Self Colored Shackle
SKU:WIR-53b3f3
Chicago Hardware Self Colored Shackle - Durable, USA-Made, WLL 6-1/2 Tons, Meets Federal Specs RR-C-271D
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Chicago Hardware Drop Forged Screw Pin Self Colored Shackle offers unmatched durability and safety. Manufactured in the USA, this shackle features a self-colored finish for enhanced corrosion resistance. With a working load limit of 6-1/2 tons and heat-treated pins, it ensures reliable strength in lifting and towing operations. Meeting Federal Specifications RR-C-271D Type IVA, this shackle is marked with size, WLL, and trademark for easy identification, emphasizing compliance and quality.

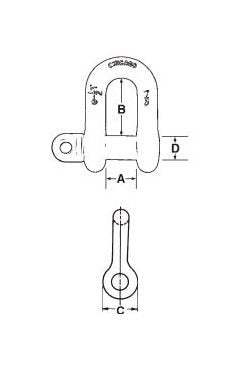

Product Specifications
Specifications Length B
2-7/8"
Specifications Length Tolerance
1/4"
Specifications Od Eyes C
2-1/8"
Specifications Pin Or Bolt Diameter D
1"
Specifications Size Dia
7/8"
Specifications Width A
1-7/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
6-1/2
Specifications Wt Per 100 Pcs Lbs
320
CAGE
0T9L4
NAICS
332999
PSC
5340
