Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

SKU:WIR-baa7b4

Premium-grade 1/2" self colored shackle with 2-ton WLL. Heat treated, meets Federal Specification RR-C-271D Type IVA for safety & reliability.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

$189.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

Chicago Hardware Drop Forged Screw Pin Self Colored Shackle

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Drop Forged Screw Pin Self Colored Shackle is a premium-grade shackle suitable for various applications. Available in 1/2" size with a 2-ton working load limit, this shackle is heat treated for enhanced durability. Marked with size, WLL, and trademark for easy identification. Meeting Federal Specification RR-C-271D Type IVA, this shackle ensures safety and reliability. Ideal for lifting and towing operations, this shackle is a versatile and dependable choice for both consumer and institutional buyers.

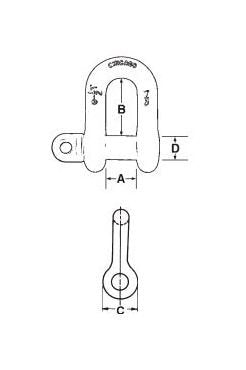

Product Specifications

Specifications Length B
1-11/16"
Specifications Length Tolerance
1/8"
Specifications Od Eyes C
1-1/4"
Specifications Pin Or Bolt Diameter D
5/8"
Specifications Size Dia
1/2"
Specifications Width A
13/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
2
Specifications Wt Per 100 Pcs Lbs
69.5
CAGE
0T9L4
NAICS
332999
PSC
5340
