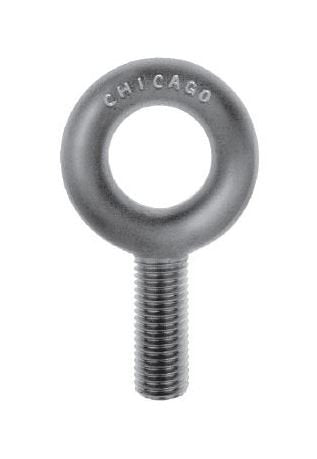

Chicago Hardware Eye Bolt Plain Pattern
Chicago Hardware Eye Bolt Plain Pattern
SKU:WIR-5578da
Chicago Hardware Eye Bolt Plain Pattern - Heavy-duty, USA-made hardware with 1400 lbs WLL, ideal for machinery installations.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Chicago Hardware Eye Bolt Plain Pattern
$12.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Eye Bolt Plain Pattern
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Eye Bolt Plain Pattern is a reliable hardware component designed for heavy-duty applications. Made in the USA, it features a Shank Length of 1-1/4", providing sturdy support. With a Working Load Limit of 1400 lbs, it ensures secure anchoring. This eye bolt meets stringent industry standards for safety and durability, making it a top choice for machinery installations in various settings.
Product Specifications
Specifications Id Eye
1"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
1-21/32"
Specifications Overall Length In
2-29/32"
Specifications Shank Dia Thread Size
3/8"-16
Specifications Shank Length
1-1/4"

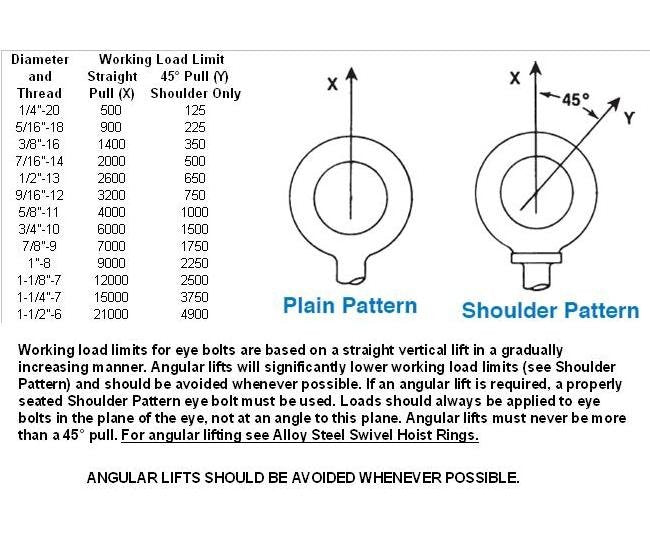

Specifications Wll Lbs
1400
CAGE
0T9L4
NAICS
332722
PSC
5306
