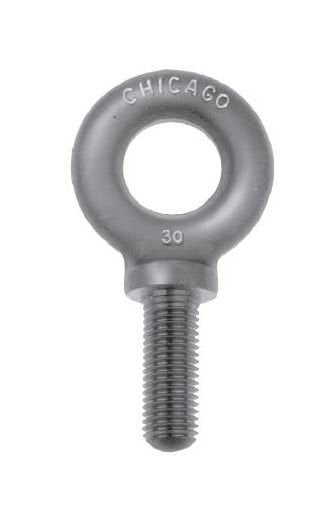

Chicago Hardware Eye Bolt Shoulder 1/2"-13 x 1-1/2"
Chicago Hardware Eye Bolt Shoulder 1/2"-13 x 1-1/2"
SKU:WIR-f2893c
Chicago Hardware Eye Bolt: Durable, USA-Made, 2600 lbs WLL, 1-1/2" Shank, Secure Cable Attachments
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Chicago Hardware Eye Bolt Shoulder 1/2"-13 x 1-1/2"
$14.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Eye Bolt Shoulder 1/2"-13 x 1-1/2"
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

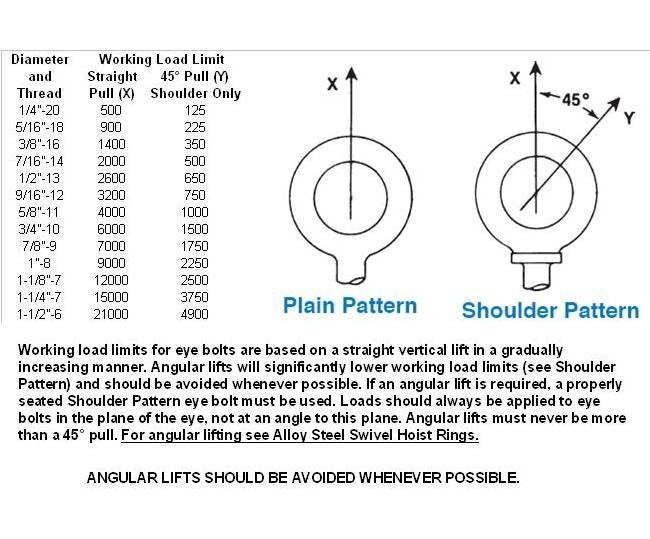

The Chicago Hardware Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern are crafted for durability and safety, with a 5 to 1 safety factor for vertical loads. Made in the USA, these eye bolts feature a 1-1/2" shank length, 2600 lbs Working Load Limit (WLL), and precise dimensions to ensure secure cable assembly attachment. With a 10% manufacturing variation allowance, these bolts meet rigorous industrial standards.
Product Specifications
Specifications Id Eye
1-3/16"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
2-1/16"
Specifications Overall Length In
4"
Specifications Shank Dia Thread Size
1/2"-13
Specifications Shank Length
1-1/2"
Specifications Wll Lbs
2600
CAGE
0T9L4
NAICS
332722
PSC
5306
