Chicago Hardware & Fixture Co. 3/4" Screw Pin Anchor Shackle

Name: Chicago Hardware & Fixture Co. 3/4" Screw Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-2fa321
Price: 599.99 USD
Availability: OutOfStock

SKU:WIR-2fa321

Heavy-duty 3/4" Screw Pin Anchor Shackle by Chicago Hardware & Fixture Co. - WLL 4-3/4 Ton, USA-made

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

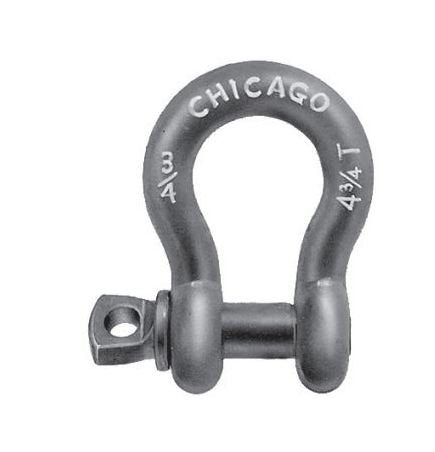

The Chicago Hardware & Fixture Co. 3/4" Screw Pin Anchor Shackle is a robust drop forged shackle designed for heavy-duty lifting applications. With a Working Load Limit (WLL) of 4-3/4 Ton, this self-colored shackle offers exceptional strength and durability. Manufactured in the USA, this shackle meets stringent quality standards and is ideal for industrial, construction, and marine use.

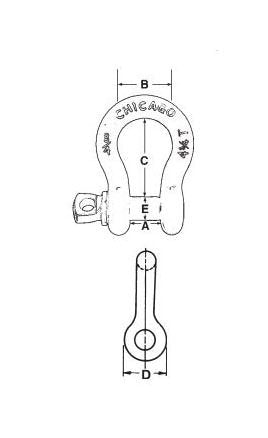

Product Specifications

Specifications Od Eyes D

1-7/8"

Specifications Pin Or Bolt Diameter E

7/8"

Specifications Size Dia

3/4"

Specifications Width Eyes A

1-1/4"

Specifications Wll

4-3/4 Ton

Specifications Wt Per 100 Pcs Lbs

245.5

CAGE

0T9L4

NAICS

332999

PSC

5340
