Chicago Hardware & Fixture Co. Drop Forged Eye Bolt - 3/8" x 3"

Name: Chicago Hardware & Fixture Co. Drop Forged Eye Bolt - 3/8" x 3"
Brand: Lexco Cable Manufacturing
SKU: WIR-4fd227
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-4fd227

Premium Drop Forged Eye Bolt - 3/8" x 3" for secure and efficient lifting applications

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware & Fixture Co. Drop Forged Eye Bolt is meticulously crafted from heat treated steel, featuring a hot galvanized finish for durability. With a 5 to 1 safety factor, this machine threaded eye bolt ensures secure lifting applications. Designed for precision and reliability, these eye bolts meet stringent industry standards, offering exceptional performance in various settings.

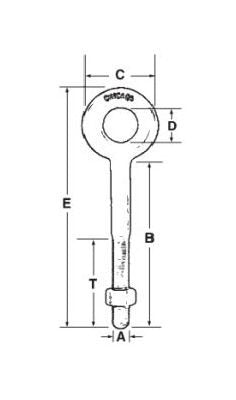

Product Specifications

Specifications Diameter A Shank Length B

3/8" x 3"

Specifications Inside Eye D

3/4"

Specifications Outside Eye C

1-1/2"

Specifications Overall Length E

4-1/2"

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

1200

Specifications Wt Per 100 Pcs Lbs

21.2

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Hardware & Fixture Co. Drop Forged Eye Bolt - 3/8" x 3"
