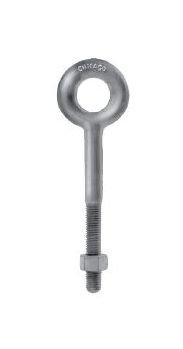

Chicago Hardware & Fixture Co. Drop Forged Eye Bolts - Machine Thread 5/16" x 5"

Name: Chicago Hardware & Fixture Co. Drop Forged Eye Bolts - Machine Thread 5/16" x 5"
Brand: Lexco Cable Manufacturing
SKU: WIR-b37ca6
Price: 249.99 USD
Availability: OutOfStock

SKU:WIR-b37ca6

Chicago Hardware & Fixture Co. Drop Forged Eye Bolts - High quality, durable eye bolts for secure fastening.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware & Fixture Co. Drop Forged Eye Bolts with machine thread are heat treated and hot galvanized for durability. These eye bolts are designed with a 5:1 safety factor, ensuring reliable performance. Perfect for direct tension applications, these eye bolts meet industry standards for safety and load capacity. Customize with special shank and thread lengths. Made in the USA.

Product Specifications

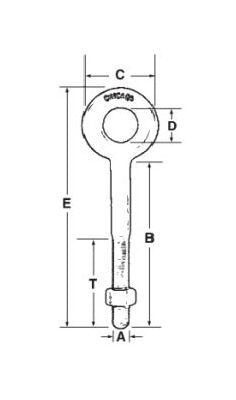

Specifications Diameter A Shank Length B

5/16" x 5"

Specifications Inside Eye D

5/8"

Specifications Outside Eye C

1-1/4"

Specifications Overall Length E

6-1/4"

Specifications Thread Length T

2-1/2" "

Specifications Wll Lbs

800

Specifications Wt Per 100 Pcs Lbs

18.6

CAGE

0T9L4

NAICS

332722

PSC

5306
