Chicago Hardware & Fixture Co. Drop Forged Round Pin Anchor Shackle

Name: Chicago Hardware & Fixture Co. Drop Forged Round Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-2a17c8
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-2a17c8

Chicago Hardware & Fixture Co. Drop Forged Anchor Shackle - Self Colored, 1-3/8", 13 1/2 Ton WLL. Meet Federal Specs RR-C-271D Type IVA.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

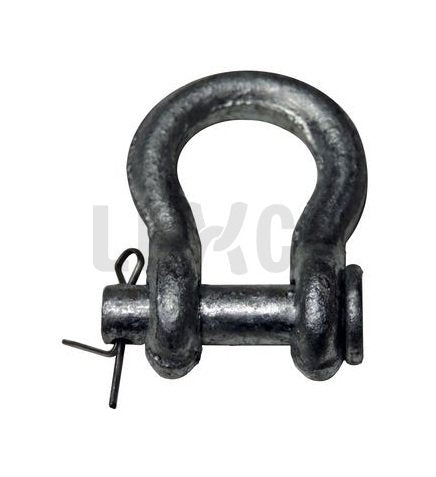

Chicago Hardware & Fixture Co. presents the Round Pin Self Colored Drop Forged Anchor Shackle - a reliable and durable shackle designed for wire rope loops used in various lifting or towing applications. This self-colored shackle is available in size 1-3/8", with a working load limit of 13 1/2 tons, heat-treated for enhanced strength and longevity. Meeting Federal Specifications RR-C-271D Type IVA, this shackle ensures safety and performance, with size, working load limit, and trademark permanently marked on the shackle for easy identification.

Product Specifications

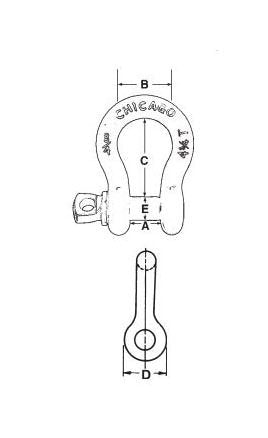

Specifications Length C

5-1/4"

Specifications Length Tolerance

1/4"

Specifications Od Eyes D

3-1/4"

Specifications Pin Or Bolt Diameter E

1-1/2"

Specifications Size Dia

1-3/8"

Specifications Width Bow B

3-1/2"

Specifications Width Eyes A

2-1/4"

Specifications Width Tolerance

1/8"

Specifications Wll Tons

13 1/2

Specifications Wt Per 100 Pcs Lbs

1232.5

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Hardware & Fixture Co. Drop Forged Round Pin Anchor Shackle
