Chicago Hardware & Fixture Co. Drop Forged Swivel 5/8'' - Made in USA
Chicago Hardware & Fixture Co. Drop Forged Swivel 5/8'' - Made in USA
SKU:WIR-e5bc3a
Chicago Hardware Drop Forged Swivel: USA-made, heat-treated steel, 2.6-ton capacity, 5:1 safety factor.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Co. Drop Forged Swivel 5/8'' - Made in USA
$349.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Co. Drop Forged Swivel 5/8'' - Made in USA
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware & Fixture Co. Drop Forged Swivel is a robust solution for applications requiring strength and durability. Made in the USA, this swivel is crafted from drop forged steel with heat-treated threaded components, ensuring reliability under heavy loads. The hot galvanized finish enhances corrosion resistance. Each swivel includes a flat head pin and cotter for secure assembly. With a working load limit of 2.6 tons and a 5:1 safety factor, this swivel meets stringent quality standards for both industrial and institutional use.

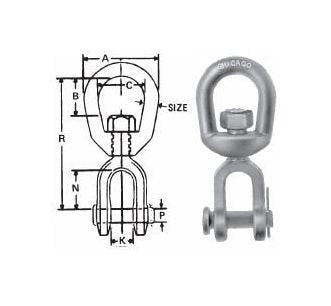

Product Specifications
Specifications A
3"
Specifications B
1-9/16"
Specifications C
1-3/4"
Specifications K
1"
Specifications N
1-17/32"
Specifications P
5/8"
Specifications R
5-5/16"
Specifications Size
5/8"
Specifications Wll Tons
2.6
Specifications Wt Per 100 Pcs Lbs
240
CAGE
0T9L4
NAICS
332510
PSC
4030
