Chicago Hardware & Fixture Co. Galvanized Round Pin Anchor Shackle

Name: Chicago Hardware & Fixture Co. Galvanized Round Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-16020f
Price: 149.99 USD
Availability: OutOfStock

SKU:WIR-16020f

Chicago Hardware & Fixture Co. Galvanized Round Pin Anchor Shackle - Essential wire rope hardware forged for durability and compliance.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

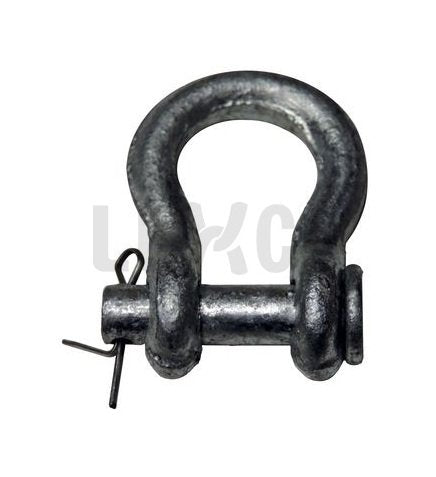

The Chicago Hardware & Fixture Co. Galvanized Round Pin Anchor Shackle is a dependable wire rope hardware essential, forged to precision for reliability in lifting and towing operations. Featuring a hot galvanized finish, this shackle ensures durability and corrosion resistance. Compliant with Federal Specifications RR-C-271D Type IVA, each shackle is heat-treated and marked with essential details including size, working load limit, and trademark for traceability and safety adherence.

Product Specifications

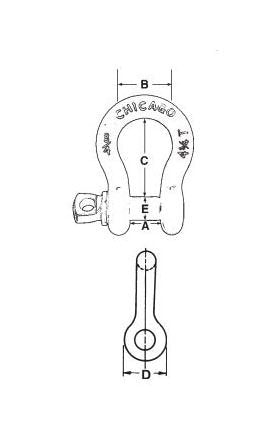

Specifications Length C

7/8"

Specifications Length Tolerance

1/16"

Specifications Od Eyes D

5/8"

Specifications Pin Or Bolt Diameter E

1/4"

Specifications Size Dia

3/16"

Specifications Width Bow B

9/16"

Specifications Width Eyes A

3/8"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

1/3

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Hardware & Fixture Co. Galvanized Round Pin Anchor Shackle
