Chicago Hardware & Fixture Co. Galvanized Screw Pin Chain Shackle

Name: Chicago Hardware & Fixture Co. Galvanized Screw Pin Chain Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-b295dd
Price: 799.99 USD
Availability: OutOfStock

SKU:WIR-b295dd

Chicago Hardware & Fixture Co. Galvanized Screw Pin Chain Shackle - High-strength and corrosion-resistant for reliable lifting solutions.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

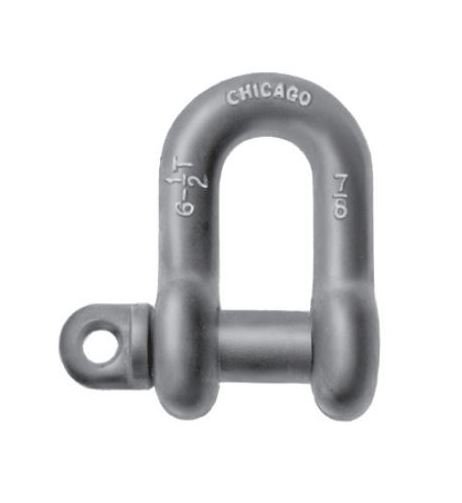

The Chicago Hardware & Fixture Co. Galvanized Drop Forged Screw Pin Chain Shackles are designed for superior strength and durability. These shackles feature a self-colored or hot galvanized finish for corrosion resistance. Each shackle is heat treated, ensuring reliability in heavy-duty applications. Meeting Federal Specifications RR-C-271D Type IVA, these shackles are marked with size, working load limit, and trademark for easy identification. With a 6 to 1 safety factor, these shackles offer a dependable lifting solution for industrial settings.

Product Specifications

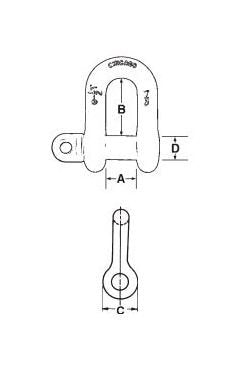

Specifications Length B

3-1/4"

Specifications Length Tolerance

1/4"

Specifications Od Eyes C

2-1/2"

Specifications Pin Or Bolt Diameter D

1-1/8"

Specifications Size Dia

Specifications Width A

1-11/16"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

8-1/2

Specifications Wt Per 100 Pcs Lbs

500

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Hardware & Fixture Co. Galvanized Screw Pin Chain Shackle
