Chicago Hardware & Fixture Co. Jaw & Eye Drop Forged Swivel - Made in USA

Name: Chicago Hardware & Fixture Co. Jaw & Eye Drop Forged Swivel - Made in USA
Brand: Lexco Cable Manufacturing
SKU: WIR-e8d0f5
Price: 289.99 USD
Availability: OutOfStock

SKU:WIR-e8d0f5

Premium Chicago Hardware & Fixture Co. Jaw & Eye Drop Forged Swivel for secure and durable wire rope applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware & Fixture Co. Jaw & Eye Drop Forged Swivel is a premium wire rope hardware essential. Crafted with drop forged steel and heat-treated threaded components, each swivel is hot galvanized for durability. The jaw and eye type swivels come with a flat head pin and cotter for secure usage. With a safety factor of 5 to 1, these swivels excel under vertical loads, boasting a Working Load Limit (WLL) of 0.43 tons. Trust in Chicago Hardware & Fixture Co. for reliable, American-made swivels.

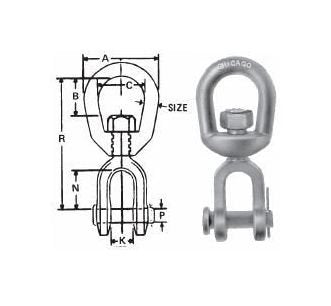

Product Specifications

Specifications A

1-1/4"

Specifications B

5/8"

Specifications C

3/4"

Specifications K

15/32"

Specifications N

25/32"

Specifications P

1/4"

Specifications R

2-1/2"

Specifications Size

1/4"

Specifications Wll Tons

0.43

Specifications Wt Per 100 Pcs Lbs

18.5

CAGE

0T9L4

NAICS

332510

PSC

4030

Chicago Hardware & Fixture Co. Jaw & Eye Drop Forged Swivel - Made in USA
