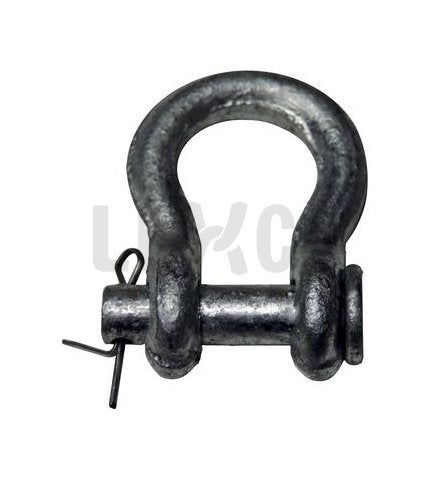

Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
SKU:WIR-4a7f2d
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle - Durable, Safe, and Compliant. Ideal for Lifting & Towing Applications.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
$219.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle is a sturdy wire rope hardware essential engineered for durability and safety. These drop forged shackles, meeting Federal Specifications RR-C-271D Type IVA, are available in various sizes and finishes, ensuring a secure fit for lifting and towing applications. With permanently marked size, working load limit, and trademark, these shackles undergo heat treatment and are precision-engineered for optimal performance. Compliant with strict industry standards, including a safety factor of 6 to 1, these shackles are ideal for a wide range of industrial and institutional uses.
Product Specifications
Specifications Length C
2-1/2"
Specifications Length Tolerance
1/8"
Specifications Od Eyes D
1-11/16"
Specifications Pin Or Bolt Diameter E
3/4"
Specifications Size Dia
5/8"
Specifications Width Bow B
1-7/8"
Specifications Width Eyes A
1-1/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
3-1/4
Specifications Wt Per 100 Pcs Lbs
150.5
CAGE
0T9L4
NAICS
332999
PSC
5340
