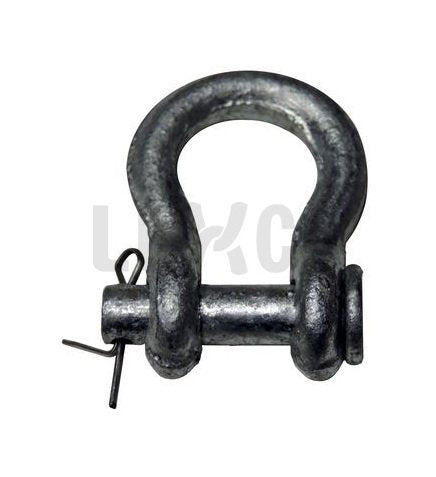

Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
SKU:WIR-7ca834
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle - Heavy-duty, USA-made shackle with 17-ton WLL, heat-treated for safety & compliance
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
per
Initiate Order
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
$1,999.00
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle
$1,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware & Fixture Co. Round Pin Galvanized Anchor Shackle is the ideal choice for heavy-duty lifting applications. Made in the USA, this drop forged shackle boasts exceptional strength and durability, with a working load limit of 17 tons. Heat-treated for maximum performance, it features precise markings for easy identification, ensuring compliance with Federal Specifications RR-C-271D Type IVA. Designed for wire rope loops, this shackle meets strict safety standards, making it a reliable choice for industrial and institutional use.
Product Specifications
Specifications Length C
5-3/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
3-1/2"
Specifications Pin Or Bolt Diameter E
1-5/8"
Specifications Size Dia
1-1/2"
Specifications Width Bow B
3-3/4"
Specifications Width Eyes A
2-3/8"
Specifications Width Tolerance
1/8"
Specifications Wll Tons
17
Specifications Wt Per 100 Pcs Lbs
1777.5
CAGE
0T9L4
NAICS
332999
PSC
5340
