Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles
Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles
SKU:WIR-91da42
Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles - Durable, Reliable, Meets Federal Specifications
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles
$129.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

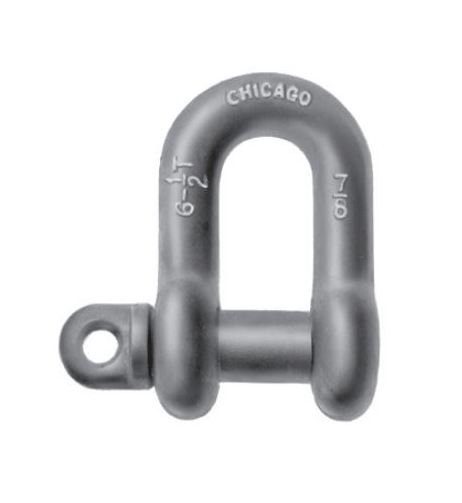

Enhance your lifting and towing operations with Chicago Hardware & Fixture Co. Screw Pin Galvanized Chain Shackles. These Drop Forged shackles are heat treated and meet Federal Specifications RR-C-271D Type IVA. The self-colored or hot galvanized finish ensures durability and rust prevention. With a working load limit of 1-1/2 tons, these shackles are marked with size, WLL, and trademark for easy identification. Count on the safety and reliability of these shackles for your heavy-duty applications.

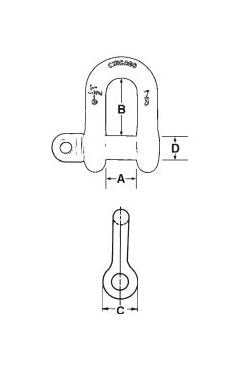

Product Specifications
Specifications Length B
1-1/2"
Specifications Length Tolerance
1/8"
Specifications Od Eyes C
1-1/8"
Specifications Pin Or Bolt Diameter D
1/2"
Specifications Size Dia
7/16"
Specifications Width A
23/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
1-1/2
Specifications Wt Per 100 Pcs Lbs
45.5
CAGE
0T9L4
NAICS
332999
PSC
5340
