Chicago Hardware & Fixture Company Drop Forged Ring Bolts Shoulder - Machine Thread
Chicago Hardware & Fixture Company Drop Forged Ring Bolts Shoulder - Machine Thread
SKU:WIR-bee0ca
High-quality Drop Forged Ring Bolts Shoulder - Machine Thread with 4900 lbs WLL, ideal for secure cable assembly attachment.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Company Drop Forged Ring Bolts Shoulder - Machine Thread
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Company Drop Forged Ring Bolts Shoulder - Machine Thread
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

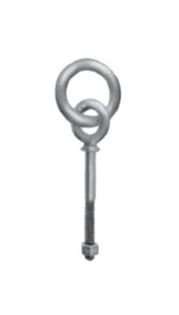

The Drop Forged Ring Bolts Shoulder - Machine Thread, made in the USA by Chicago Hardware & Fixture Company, are constructed from hot galvanized finish drop forged steel. These ring bolts are meticulously designed for secure attachment to cable assemblies, offering a diameter of 1" and a shank length of 6". With a Working Load Limit (WLL) of 4900 lbs, these bolts provide exceptional strength and durability for various applications, though they are not intended for lifting purposes.

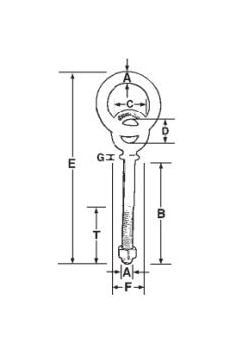

Product Specifications
Specifications Diameter A Shank Length B
1" x 6"
Specifications Id Eye Of Bolt D
2"
Specifications Id Eye Of Ring
3-3/4"
Specifications Od Eye Of Bolt C
3-3/4"
Specifications Outside Shoulder F
1-3/4"
Specifications Overall Length E
14"
Specifications Thickness At Shoulder G
5/16"
Specifications Thread Length T
3" "
Specifications Wll Lbs
4900
Specifications Wt Per 100 Pcs Lbs
681
CAGE
0T9L4
NAICS
332722
PSC
5306
