Chicago Hardware & Fixture Galvanized Drop Forged Turnbuckle - 1/4" x 4"

Name: Chicago Hardware & Fixture Galvanized Drop Forged Turnbuckle - 1/4" x 4"
Brand: Lexco Cable Manufacturing
SKU: WIR-1f49fb
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-1f49fb

Chicago Hardware & Fixture Galvanized Turnbuckle - USA Made, ASTM F1145-92, 400lbs Hook WLL, 500lbs Eye WLL

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

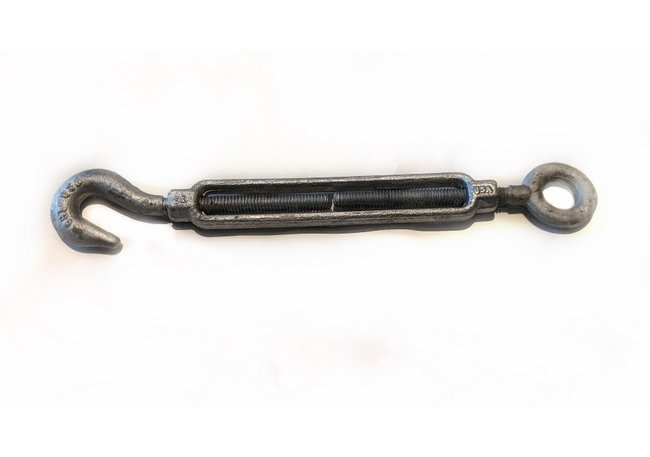

The Chicago Hardware & Fixture Galvanized Turnbuckle is a superior wire rope hardware essential, meticulously crafted in the USA. Complying with ASTM Specification F1145-92 Type 1 Grade 1, this turnbuckle boasts a closed length of 8-1/4" and a substantial working load limit of 400lbs for the hook and 500lbs for the eye fitting. Heat-treated eye, jaw, and hook fittings ensure exceptional durability and strength, making it an ideal choice for demanding applications. Available in Drop Forged Galvanized, this turnbuckle is a reliable solution for both consumer and institutional buyers seeking top-notch performance and quality.

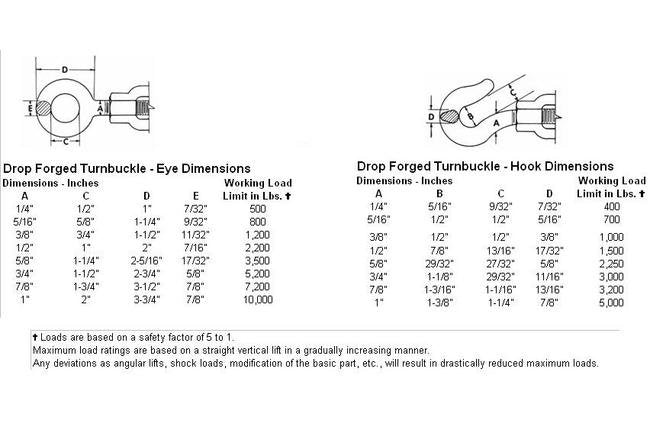

Product Specifications

Specifications Closed Lengths In

8-1/4"

Specifications Diameter Take Up

1/4" x 4"

Specifications Eye Wll

500

Specifications Hook Wll

400

Specifications Wt Per 100 Pcs Lbs
