Chicago Hardware & Fixture Galvanized Hook & Eye Turnbuckle

Name: Chicago Hardware & Fixture Galvanized Hook & Eye Turnbuckle
Brand: Lexco Cable Manufacturing
SKU: WIR-4d197e
Price: 75.99 USD
Availability: OutOfStock

SKU:WIR-4d197e

Chicago Hardware & Fixture Galvanized Hook & Eye Turnbuckle - Made in USA, ASTM F1145-92 Compliant, 5/16" x 4-1/2", WLL 700/800lbs

$75.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

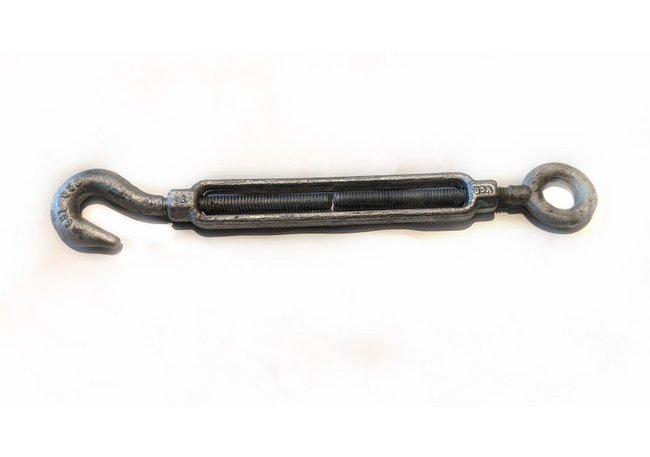

The Chicago Hardware & Fixture Galvanized Hook & Eye Turnbuckle is expertly crafted in the USA to meet the stringent performance requirements of ASTM Specification F1145-92 Type 1 Grade 1. With a closed length of 9-1/4" and a diameter of 5/16", this turnbuckle offers exceptional strength and reliability. The drop-forged construction, heat-treated eye, jaw, and hook fittings ensure durability and safety. Ideal for wire rope applications, this turnbuckle boasts a Hook Working Load Limit (WLL) of 700lbs and an Eye WLL of 800lbs. Choose between galvanized or self-colored finishes to suit your specific needs.

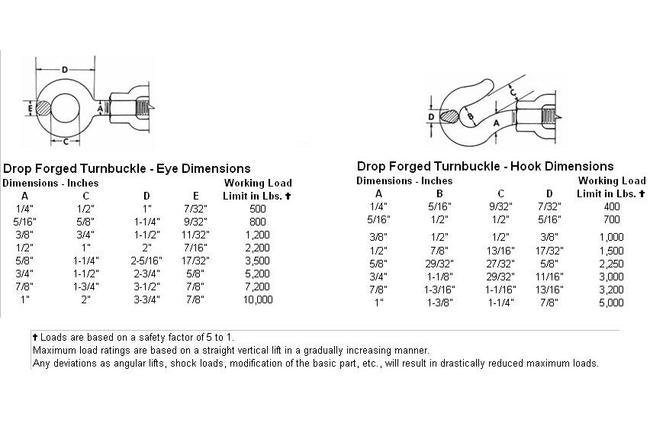

Product Specifications

Specifications Closed Lengths In

9-1/4"

Specifications Diameter Take Up

5/16" x 4-1/2"

Specifications Eye Wll

800

Specifications Hook Wll

700

Specifications Wt Per 100 Pcs Lbs

47.5

Chicago Hardware & Fixture Galvanized Hook & Eye Turnbuckle
