Chicago Hardware & Fixture Galvanized Turnbuckle

Name: Chicago Hardware & Fixture Galvanized Turnbuckle
Brand: Lexco Cable Manufacturing
SKU: WIR-d105e9
Price: 249.99 USD
Availability: OutOfStock

SKU:WIR-d105e9

Upgrade your wire rope setup with the durable Chicago Hardware & Fixture Galvanized Turnbuckle, meeting ASTM standards.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

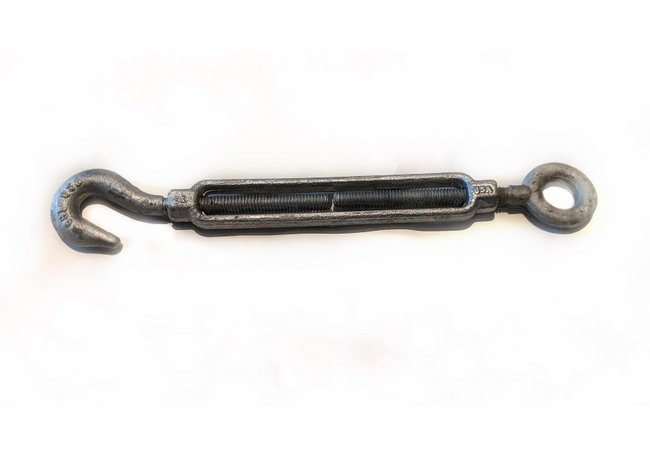

Upgrade your wire rope setup with the Chicago Hardware & Fixture Galvanized Turnbuckle. These Made in USA turnbuckles meet ASTM Specification F1145-92 Type 1 Grade 1, providing high performance and durability. Heat-treated eye, jaw, and hook fittings ensure reliable strength. Available in Drop Forged Galvanized or Self Colored finishes, these turnbuckles offer a Closed Length of 13-5/8" with a Diameter & Take-up of 1/2" x 6". The Hook and Eye Working Load Limits (WLL) are 1500 and 2200 lbs respectively, making them ideal for heavy-duty applications.

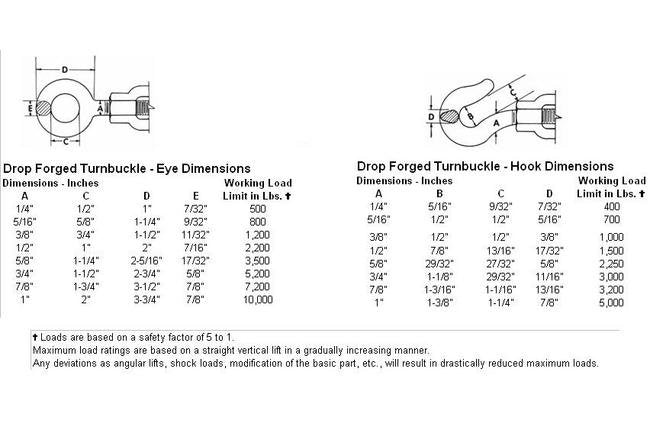

Product Specifications

Specifications Closed Lengths In

13-5/8"

Specifications Diameter Take Up

1/2" x 6"

Specifications Eye Wll

2200

Specifications Hook Wll

1500

Specifications Wt Per 100 Pcs Lbs

170

Chicago Hardware & Fixture Galvanized Turnbuckle
