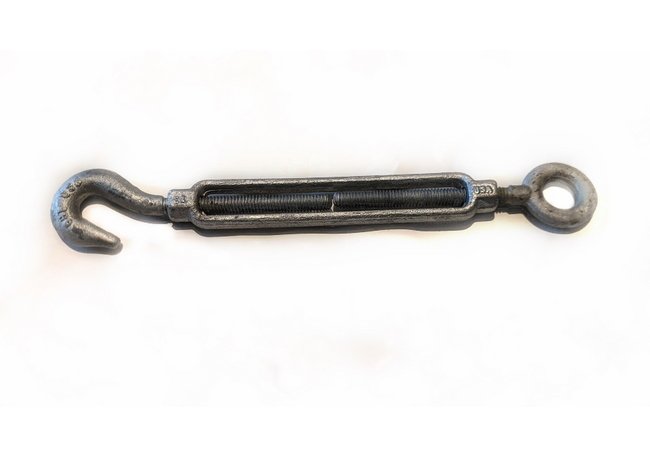

Chicago Hardware & Fixture Galvanized Turnbuckle
Chicago Hardware & Fixture Galvanized Turnbuckle
SKU:WIR-d2646c
High-quality Chicago Hardware & Fixture Galvanized Turnbuckle with ASTM F1145-92 Grade 1 compliance. Ideal for heavy-duty wire rope applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Galvanized Turnbuckle
$129.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Galvanized Turnbuckle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

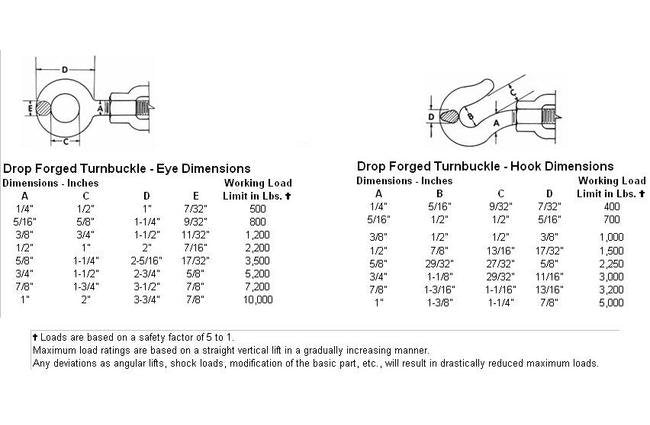

The Chicago Hardware & Fixture Galvanized Turnbuckle features a Diameter & Take-up of 5/8" x 9", with Closed Length of 17-3/8" to meet ASTM F1145-92 Type 1 Grade 1 standards. Heat-treated Eye, Jaw & Hook fittings provide superior strength. Made in the USA, this turnbuckle offers a Hook WLL of 2250 and an Eye WLL of 3500, making it ideal for heavy-duty applications.
Product Specifications
Specifications Closed Lengths In
17-3/8"
Specifications Diameter Take Up
5/8" x 9"
Specifications Eye Wll
3500
Specifications Hook Wll
2250
Specifications Wt Per 100 Pcs Lbs
320
