Chicago Hardware & Fixture Galvanized Turnbuckles
Chicago Hardware & Fixture Galvanized Turnbuckles
SKU:WIR-a39a23
Chicago Hardware & Fixture Galvanized Turnbuckles: USA-made, ASTM F1145-92 Type 1 Grade 1 compliant, strong and versatile hardware for various applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Galvanized Turnbuckles
$799.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Galvanized Turnbuckles
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

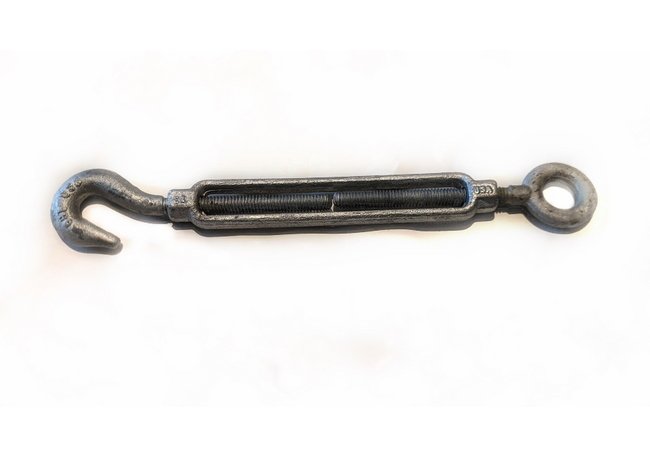

The Chicago Hardware & Fixture Galvanized Turnbuckles are crafted in the USA, meeting the stringent ASTM Specification F1145-92 Type 1 Grade 1 standards, ensuring exceptional durability and performance. These hook and eye turnbuckles boast a closed length of 18-7/8 inches with a 3/4" diameter and 9" take-up, providing reliability for a range of applications. Heat-treated eye, jaw, and hook fittings enhance strength while offering a Working Load Limit (WLL) of 5200 lbs for the eye and 3000 lbs for the hook. Choose between drop forged galvanized or self-colored finishes, making these turnbuckles versatile and compliant with industry requirements.

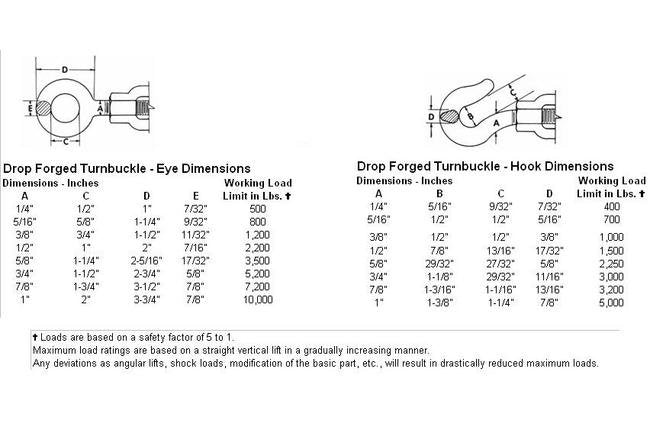

Product Specifications
Specifications Closed Lengths In
18-7/8"
Specifications Diameter Take Up
3/4" x 9"
Specifications Eye Wll
5200
Specifications Hook Wll
3000
Specifications Wt Per 100 Pcs Lbs
512.5
