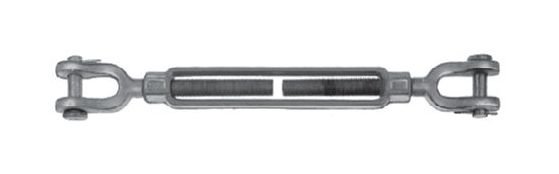

Chicago Hardware & Fixture Jaw & Jaw Turnbuckle, Made in USA, Hot Galvanized
Chicago Hardware & Fixture Jaw & Jaw Turnbuckle, Made in USA, Hot Galvanized
SKU:WIR-0fe1bf
Chicago Hardware & Fixture USA-made Turnbuckles with hot galvanized finish, ASTM F1145-92 compliant, durable and reliable for industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Jaw & Jaw Turnbuckle, Made in USA, Hot Galvanized
$189.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Jaw & Jaw Turnbuckle, Made in USA, Hot Galvanized
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware & Fixture Jaw & Jaw Turnbuckles are meticulously crafted in the USA to meet the stringent performance requirements of ASTM Specification F1145-92 Type 1 Grade 1, surpassing the FF-T-791B standards. Designed for durability, these turnbuckles feature hot galvanized drop-forged construction with eye, jaw, and hook fittings that are heat treated for reliability. Each set includes round pins and cotter keys for secure fastening, with locking nuts also available. Ideal for wire rope applications, these turnbuckles offer a closed length of 16-1/2" and a diameter of 1/2" x 9", with a Working Load Limit (WLL) of 2200 lbs. Ensure your projects are well-supported with these top-quality turnbuckles.
Product Specifications
Specifications Closed Lengths In
16-1/2"
Specifications Diameter Take Up
1/2" x 9"
Specifications Wll Lbs
2200
Specifications Wt Per 100 Pcs Lbs
202.5
