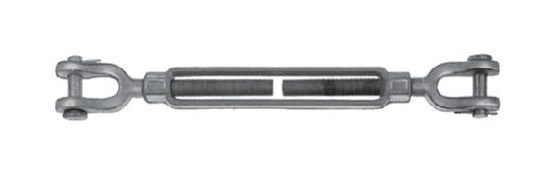

The Chicago Hardware & Fixture Jaw & Jaw Turnbuckles are precision-engineered to meet the stringent performance requirements of ASTM Specification F1145-92 Type 1 Grade 1, surpassing FF-T-791B standards. Featuring a diameter of 5/16" x 4-1/2" and a closed length of 9-1/4", these turnbuckles are designed for durability and reliability. Each unit is drop forged and hot galvanized to ensure superior strength and corrosion resistance, making them ideal for heavy-duty applications. Supplied with round pins and cotter keys, these turnbuckles offer a secure locking mechanism. Made in the USA, these turnbuckles are heat treated and built to last, with a Working Load Limit (WLL) of 800 lbs.
Product Specifications
Specifications Closed Lengths In
9-1/4"
Specifications Diameter Take Up
5/16" x 4-1/2"
Specifications Wll Lbs
800
Specifications Wt Per 100 Pcs Lbs
52.5
