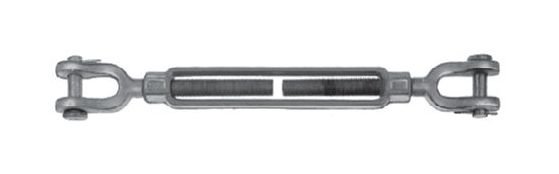

Chicago Hardware & Fixture Jaw & Jaw Turnbuckles - Made in USA
Chicago Hardware & Fixture Jaw & Jaw Turnbuckles - Made in USA
SKU:WIR-e73010
Chicago Hardware & Fixture Jaw & Jaw Turnbuckles - Precision-engineered and durable. Ideal for heavy-duty wire rope applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Jaw & Jaw Turnbuckles - Made in USA
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Jaw & Jaw Turnbuckles - Made in USA
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

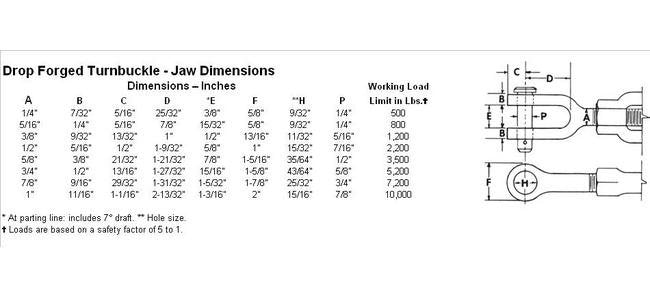

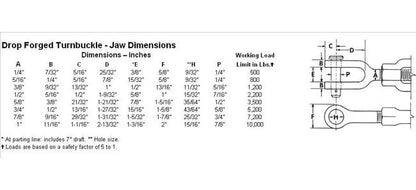

The Chicago Hardware & Fixture Jaw & Jaw Turnbuckles are precision-engineered to meet the stringent performance requirements of ASTM Specification F1145-92 Type 1 Grade 1, superseding FF-T-791B. Featuring a diameter & take-up of 1/4" x 4" and a closed length of 8-1/2", these turnbuckles are designed for heavy-duty applications. Each unit is drop forged, heat treated, and hot galvanized, ensuring unmatched durability and corrosion resistance. Ideal for securing wire ropes and cables, these turnbuckles come with jaw types supplied with round pins and cotter keys, or locking nuts upon request. With a Working Load Limit (WLL) of 500 lbs and a weight of 40 lbs per 100 pieces, these Made in USA turnbuckles are a reliable choice for both consumer and institutional buyers.
Product Specifications
Specifications Closed Lengths In
8-1/2"
Specifications Diameter Take Up
1/4" x 4"
Specifications Wll Lbs
500
Specifications Wt Per 100 Pcs Lbs
40
