Chicago Hardware & Fixture Self Colored Turnbuckle

Name: Chicago Hardware & Fixture Self Colored Turnbuckle
Brand: Lexco Cable Manufacturing
SKU: WIR-bf84ce
Price: 139.99 USD
Availability: OutOfStock

SKU:WIR-bf84ce

Chicago Hardware & Fixture Self Colored Turnbuckle: Made in USA, ASTM F1145-92 Type 1 Grade 1 compliant, high WLL, durable design.

$139.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

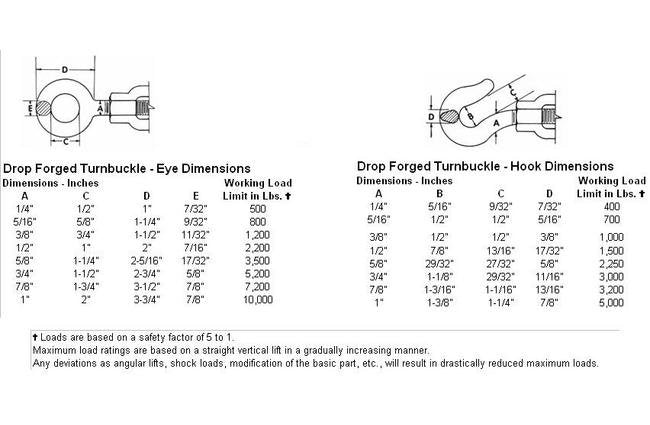

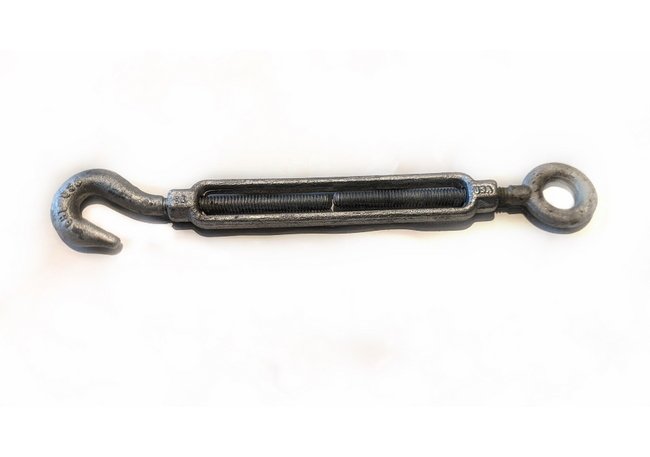

The Chicago Hardware & Fixture Self Colored Turnbuckle is engineered to meet the stringent performance requirements of ASTM Specification F1145-92 Type 1 Grade 1. Made in the USA, this turnbuckle features heat-treated eye, jaw, and hook fittings for durability and reliability. With a closed length of 17-3/8" and a diameter & take-up of 5/8" x 9", it offers a high Working Load Limit (WLL) of 2250 lbs for the hook and 3500 lbs for the eye. Ideal for a wide range of applications, this turnbuckle ensures strength and performance.

Product Specifications

Specifications Closed Lengths In

17-3/8"

Specifications Diameter Take Up

5/8" x 9"

Specifications Eye Wll

3500

Specifications Hook Wll

2250

Specifications Wt Per 100 Pcs Lbs

320

Chicago Hardware & Fixture Self Colored Turnbuckle
