Chicago Hardware & Fixture Galvanized Turnbuckle - Made in USA, ASTM F1145-92 Compliant, WLL: 1500/2200 lbs
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Chicago Hardware & Fixture Turnbuckle - Galvanized, Made in USA
$289.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware & Fixture Turnbuckle - Galvanized, Made in USA
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

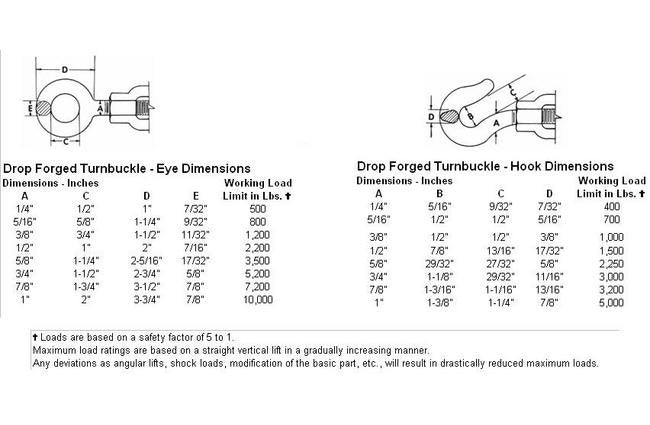

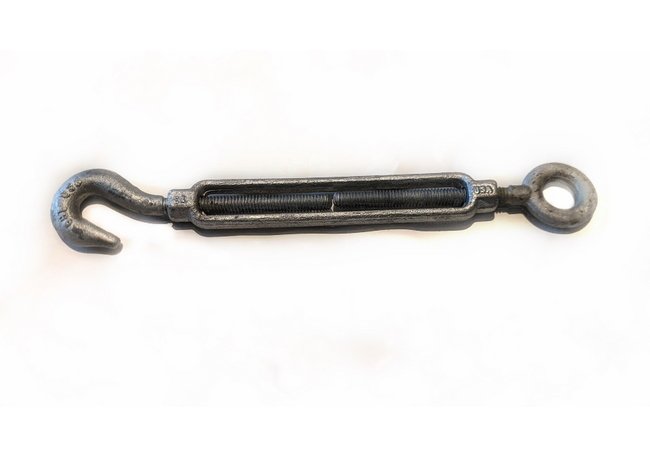

Enhance your wire rope assemblies with our high-quality Chicago Hardware & Fixture Galvanized Turnbuckle. Meeting ASTM Specification F1145-92 Type 1 Grade 1, these turnbuckles feature heat-treated eye, jaw, and hook fittings for superior durability. Available in Drop Forged Galvanized or Self Colored options, these turnbuckles offer a Closed Length of 16-3/8", a Diameter & Take-up of 1/2" x 9", and impressive Working Load Limits (WLL) of 1500 lbs for the Hook and 2200 lbs for the Eye.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Closed Lengths In
16-3/8"
Specifications Diameter Take Up
1/2" x 9"
Specifications Eye Wll
2200
Specifications Hook Wll
1500
Specifications Wt Per 100 Pcs Lbs
202
