Chicago Hardware & Fixture Turnbuckle - Self Colored

Name: Chicago Hardware & Fixture Turnbuckle - Self Colored
Brand: Lexco Cable Manufacturing
SKU: WIR-671cd1
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-671cd1

High-quality Chicago Hardware & Fixture Self Colored Turnbuckle, Made in USA, ASTM F1145-92 Type 1 Grade 1 compliant, WLL 700-800 lbs

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

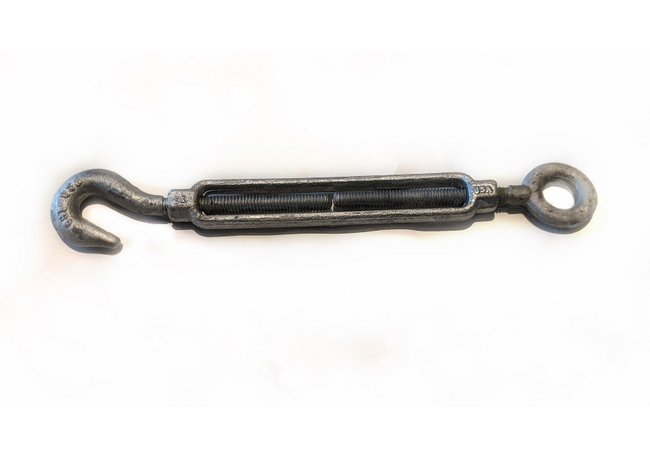

The Chicago Hardware & Fixture Self Colored Turnbuckle is a high-quality, Made in USA product designed to meet the performance standards of ASTM Specification F1145-92 Type 1 Grade 1. With heat-treated eye, jaw, and hook fittings, this turnbuckle offers exceptional strength and durability. Available in 5/16" diameter with a 4-1/2" take-up, it has a Working Load Limit (WLL) of 700 lbs for the hook and 800 lbs for the eye fitting. Suitable for various applications, this turnbuckle is perfect for government, institutional, and industrial use.

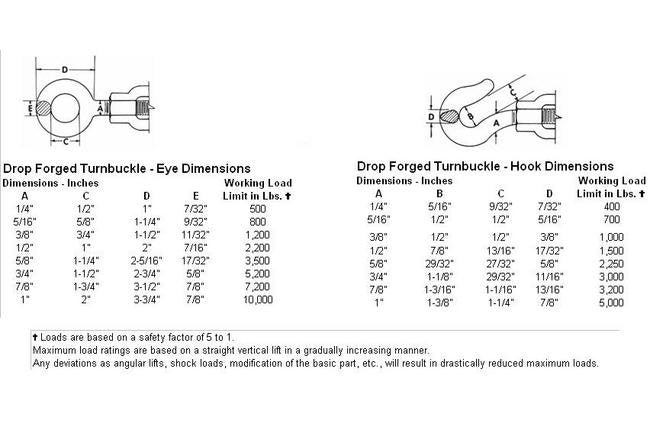

Product Specifications

Specifications Closed Lengths In

9-1/4"

Specifications Diameter Take Up

5/16" x 4-1/2"

Specifications Eye Wll

800

Specifications Hook Wll

700

Specifications Wt Per 100 Pcs Lbs

47.5
