Chicago Hardware & Fixture USA Turnbuckles - Drop Forged Galvanized

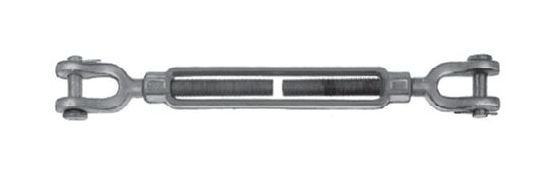

Name: Chicago Hardware & Fixture USA Turnbuckles - Drop Forged Galvanized
Brand: Lexco Cable Manufacturing
SKU: WIR-1c0c5e
Price: 499.99 USD
Availability: OutOfStock

SKU:WIR-1c0c5e

Chicago Hardware & Fixture USA Turnbuckles - Premium quality, ASTM compliant turnbuckles for diverse applications.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware & Fixture Jaw & Jaw Turnbuckles are proudly made in the USA, meeting the performance requirements of ASTM Specification F1145-92 Type 1 Grade 1. These turnbuckles are meticulously crafted with eye, jaw, and hook fittings that are heat treated for durability. Featuring a diameter & take-up of 1/2" x 2" and a closed length of 8-7/8", these turnbuckles have a Working Load Limit (WLL) of 2200 lbs. Ideal for a wide range of applications, these drop forged hot galvanized turnbuckles ensure reliability and compliance with industry standards.

Product Specifications

Specifications Closed Lengths In

8-7/8"

Specifications Diameter Take Up

1/2" x 2"

Specifications Wll Lbs

2200

Specifications Wt Per 100 Pcs Lbs

119

Chicago Hardware & Fixture USA Turnbuckles - Drop Forged Galvanized
