Chicago Hardware & Fixture USA Turnbuckles - Hot Galvanized, Drop Forged

Name: Chicago Hardware & Fixture USA Turnbuckles - Hot Galvanized, Drop Forged
Brand: Lexco Cable Manufacturing
SKU: WIR-986cf3
Price: 299.99 USD
Availability: OutOfStock

SKU:WIR-986cf3

Chicago Hardware & Fixture USA Turnbuckles - ASTM F1145-92 Grade 1, Hot Galvanized, Drop Forged - Perfect for industrial & marine applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Chicago Hardware & Fixture USA Turnbuckles are meticulously crafted to meet the stringent ASTM F1145-92 Type 1 Grade 1 specifications, delivering exceptional performance and reliability. These turnbuckles feature a 7/8" x 12" diameter & take-up, a closed length of 23-1/2", and a robust weight capacity of 7200 lbs. Designed with hot galvanized, drop forged construction, they ensure durability and strength for a wide range of applications. The jaw & eye fittings are heat-treated, and locking nuts are available for added security. Whether for industrial, construction, or marine use, these turnbuckles are a testament to quality and American craftsmanship.

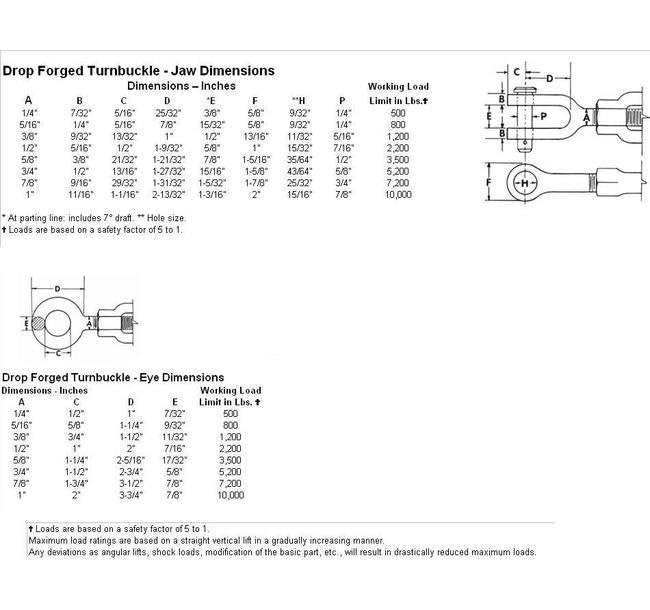

Product Specifications

Specifications Closed Lengths In

23-1/2"

Specifications Diameter Take Up

7/8" x 12"

Specifications Eye Jaw Wll

7200

Specifications Wt Per 100 Pcs Lbs

842.5

Chicago Hardware & Fixture USA Turnbuckles - Hot Galvanized, Drop Forged
