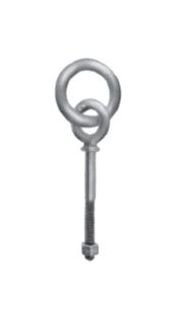

Chicago Hardware Forged Ring Bolts Shoulder - Machine Thread

Name: Chicago Hardware Forged Ring Bolts Shoulder - Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-ed188d
Price: 399.99 USD
Availability: OutOfStock

SKU:WIR-ed188d

Chicago Hardware's top-quality Forged Ring Bolts - Built to Last!

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Forged Ring Bolts Shoulder - Machine Thread are meticulously crafted in the USA to ensure superior quality and durability. These drop forged steel ring bolts come with precise dimensions and a hot galvanized finish, making them ideal for a wide range of applications. Designed for secure cable assembly attachment, these bolts offer a reliable solution for various projects while adhering to strict safety guidelines.

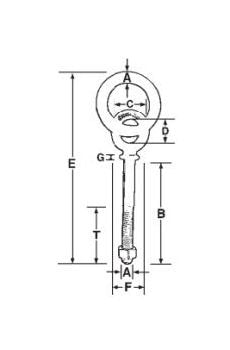

Product Specifications

Specifications Diameter A Shank Length B

7/8" x 8"

Specifications Id Eye Of Bolt D

1-3/4"

Specifications Id Eye Of Ring

3-1/4"

Specifications Od Eye Of Bolt C

3-1/2"

Specifications Outside Shoulder F

1-1/2"

Specifications Overall Length E

15"

Specifications Thickness At Shoulder G

9/32"

Specifications Thread Length T

4" "

Specifications Wll Lbs

3500

Specifications Wt Per 100 Pcs Lbs

482

CAGE

0T9L4

NAICS

332722

PSC

5306

Chicago Hardware Forged Ring Bolts Shoulder - Machine Thread
