Chicago Hardware Galvanized Screw Pin Shackle

Chicago Hardware Galvanized Screw Pin Shackle

SKU:WIR-c040d5

Chicago Hardware galvanized screw pin shackle for lifting and towing applications, meets Federal specifications with clear size marking.

Regular price $149.99
Regular price Sale price $149.99
Sale

Initiate Order

Chicago Hardware Galvanized Screw Pin Shackle

Chicago Hardware Galvanized Screw Pin Shackle

$149.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Galvanized Screw Pin Shackle

Chicago Hardware Galvanized Screw Pin Shackle

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

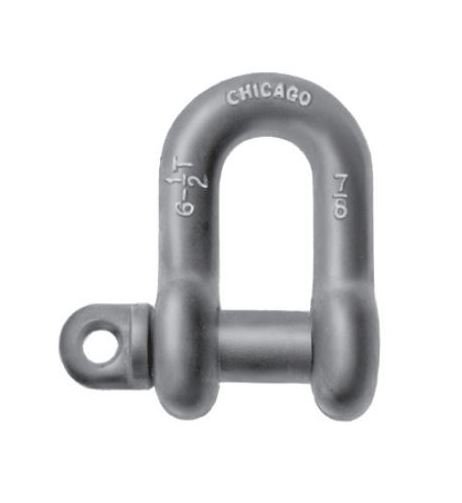

The Chicago Hardware Drop Forged Screw Pin Chain Shackles are designed for versatile use, featuring a hot galvanized finish for enhanced durability. These shackles are ideal for lifting and towing applications, meeting Federal Specifications RR-C-271D Type IVA. Heat-treated for maximum strength, with clear marking of size, working load limit, and trademark for easy identification. Ensure safety and reliability with a 6 to 1 safety factor, suitable for a wide range of industrial needs.

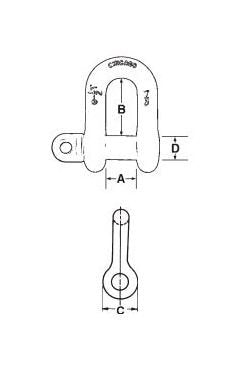

Product Specifications

Specifications Length B
1"
Specifications Length Tolerance
1/16"
Specifications Od Eyes C
7/8"
Specifications Pin Or Bolt Diameter D
3/8"
Specifications Size Dia
5/16"
Specifications Width A
17/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
3/4
Specifications Wt Per 100 Pcs Lbs
20
CAGE
0T9L4
NAICS
332999
PSC
5340
