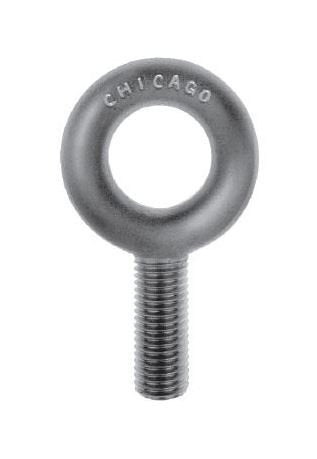

Chicago Hardware Machinery Eye Bolt - Plain Pattern, 1"-8 Thread Size
Chicago Hardware Machinery Eye Bolt - Plain Pattern, 1"-8 Thread Size
SKU:WIR-80a294
Chicago Hardware Machinery Eye Bolt - Heavy-duty, USA-made eye bolt for secure cable assembly attachment.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chicago Hardware Machinery Eye Bolt - Plain Pattern, 1"-8 Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Machinery Eye Bolt - Plain Pattern, 1"-8 Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

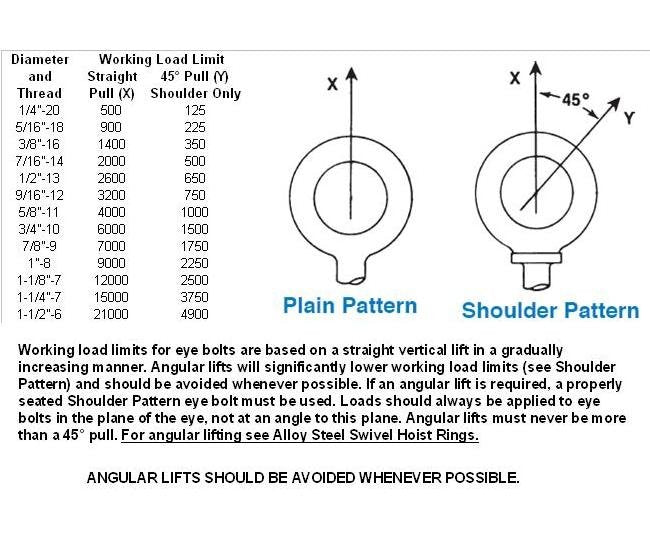

The Chicago Hardware Machinery Eye Bolt in Plain Pattern with a 1"-8 Thread Size is expertly crafted to ensure maximum safety and durability for your industrial applications. With a Working Load Limit (WLL) of 9000 lbs, this eye bolt is designed to withstand heavy vertical loads. Made in the USA, this high-quality eye bolt meets stringent manufacturing standards and provides reliable performance for a wide range of cable assembly needs.
Product Specifications
Specifications Id Eye
1-13/16"
Specifications Max Lengths
5"
Specifications Od Eye
3-9/16"
Specifications Overall Length In
6-1/16"
Specifications Shank Dia Thread Size
1"-8
Specifications Shank Length
2-1/2"
Specifications Wll Lbs
9000
CAGE
0T9L4
NAICS
332722
PSC
5306
