Chicago Hardware Machinery Eye Bolt - Standard Shank Lengths
Chicago Hardware Machinery Eye Bolt - Standard Shank Lengths
SKU:WIR-23368d
Heavy-duty Machinery Eye Bolt with 2000 lbs WLL, USA-Made for superior strength and reliability.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Chicago Hardware Machinery Eye Bolt - Standard Shank Lengths
$14.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Machinery Eye Bolt - Standard Shank Lengths
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

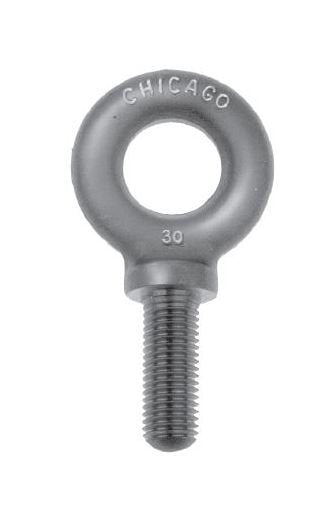

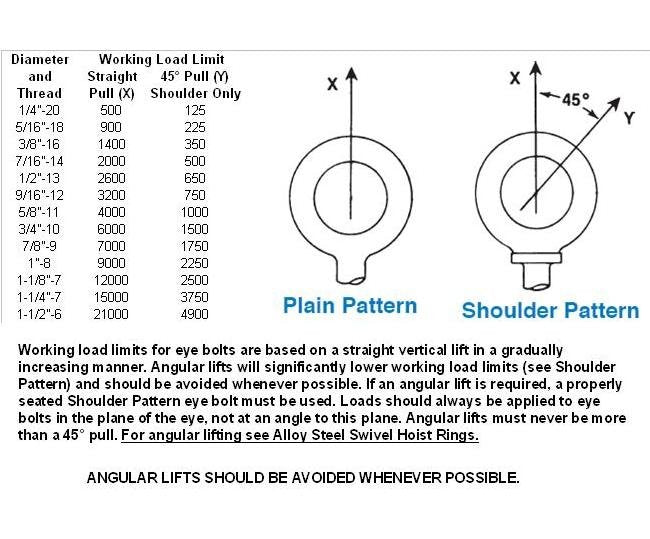

The Chicago Hardware Machinery Eye Bolt offers exceptional strength and reliability for heavy-duty cable assemblies. With a Shank Length of 1-3/8" and a Working Load Limit of 2000 lbs, this eye bolt is built to support vertical loads with a safety factor of 5 to 1. Made in the USA by Chicago Hardware & Fixture Company, this bolt complies with industry standards for superior performance in both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Id Eye
1-3/32"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
1-27/32"
Specifications Overall Length In
3-5/8"
Specifications Shank Dia Thread Size
7/16"-14
Specifications Shank Length
1-3/8"
Specifications Wll Lbs
2000
CAGE
0T9L4
NAICS
332722
PSC
5306
