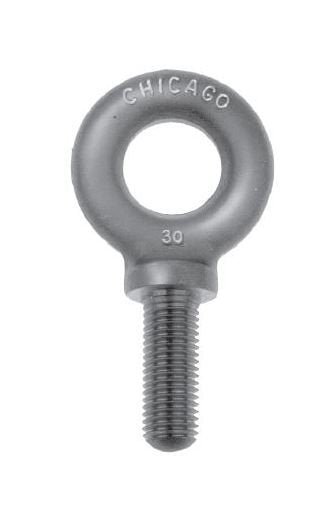

Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths
Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths
SKU:WIR-f813de
Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths - Reliable and durable solution for cable assemblies. WLL: 12000 lbs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

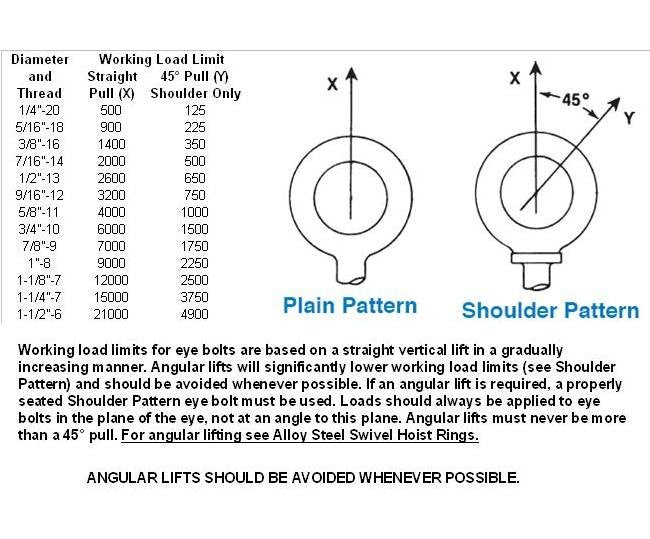

The Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths is a robust and reliable solution for attaching to cable assemblies. With a Shank Length of 2-3/4" and a WLL of 12000 lbs, these eye bolts are designed for vertical loads with a safety factor of 5 to 1. Precision-engineered in the USA by Chicago Hardware & Fixture Company, these bolts meet stringent industry standards, ensuring durability and performance.
Product Specifications
Specifications Id Eye
2"
Specifications Max Lengths
2-3/4"
Specifications Od Eye
4"
Specifications Overall Length In
7-1/2"
Specifications Shank Dia Thread Size
1-1/8"-7
Specifications Shank Length
2-3/4"
Specifications Wll Lbs
12000
CAGE
0T9L4
NAICS
332722
PSC
5306
