Chicago Hardware Machinery Eye Bolts with Standard Shank Lengths for reliable vertical load support and secure cable attachment.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Chicago Hardware Machinery Eye Bolts
$39.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Machinery Eye Bolts
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

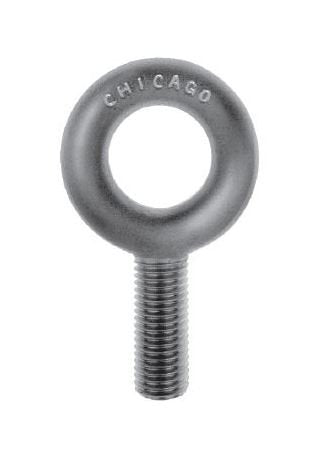

The Chicago Hardware Machinery Eye Bolts with Standard Shank Lengths in Plain Pattern are designed for superior vertical load capacity, featuring a Shank Length of 2-3/4" and a WLL of 12000 lbs. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts ensure quality and reliability. With precise specifications including an I.D. Eye of 2" and O.D. Eye of 4", these bolts provide secure attachment points for cable assemblies, meeting stringent safety requirements.
Product Specifications
Specifications Id Eye
2"
Specifications Max Lengths
2-3/4"
Specifications Od Eye
4"
Specifications Overall Length In
6-3/4"
Specifications Shank Dia Thread Size
1-1/8"-7
Specifications Shank Length
2-3/4"
Specifications Wll Lbs
12000
CAGE
0T9L4
NAICS
332722
PSC
5306
