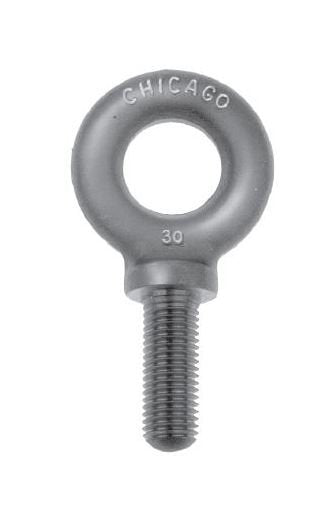

Chicago Hardware Machinery Eye Bolts - Shoulder Pattern
Chicago Hardware Machinery Eye Bolts - Shoulder Pattern
SKU:WIR-0f25b0
Chicago Hardware Machinery Eye Bolts - Secure, Durable, USA-Made, Ideal for Heavy-Duty Applications
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
Chicago Hardware Machinery Eye Bolts - Shoulder Pattern
$27.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Machinery Eye Bolts - Shoulder Pattern
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

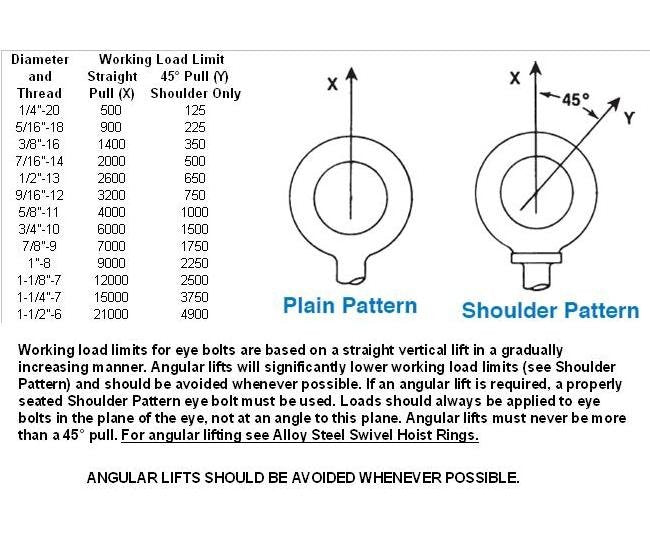

The Chicago Hardware Machinery Eye Bolts with Shoulder pattern are engineered for heavy-duty applications with a focus on safety and durability. Made in the USA, these bolts feature a Shank Length of 1-1/8", providing a secure attachment to cable assemblies. With an impressive Working Load Limit (WLL) of 900 lbs, these bolts ensure reliable performance under vertical loads, meeting a safety factor of 5 to 1. Chicago Hardware guarantees quality, with maximum lengths reaching 4" and a Shank Diameter & Thread Size of 5/16"-18. Ideal for institutional and government procurement, these bolts adhere to stringent standards for strength and reliability.
Product Specifications
Specifications Id Eye
7/8"
Specifications Max Lengths
4"
Specifications Od Eye
1-1/2"
Specifications Overall Length In
2-3/4"
Specifications Shank Dia Thread Size
5/16"-18
Specifications Shank Length
1-1/8"
Specifications Wll Lbs
900
CAGE
0T9L4
NAICS
332722
PSC
5306
