Chicago Hardware Round Pin Anchor Shackle

Chicago Hardware Round Pin Anchor Shackle

SKU:WIR-df6b2c

High-quality Round Pin Anchor Shackle by Chicago Hardware, Made in USA, meets federal specifications RR-C-271D Type IVA, ideal for lifting and towing applications.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Chicago Hardware Round Pin Anchor Shackle

Chicago Hardware Round Pin Anchor Shackle

$34.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Round Pin Anchor Shackle

Chicago Hardware Round Pin Anchor Shackle

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

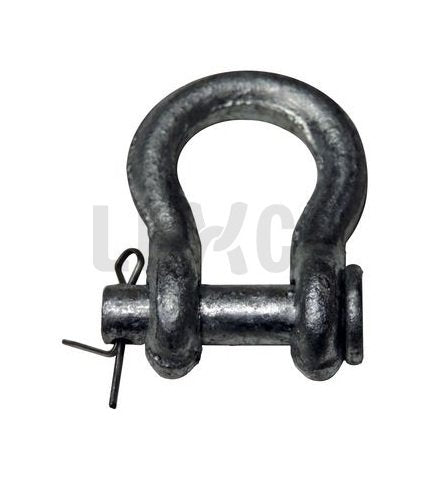

The Chicago Hardware Round Pin Anchor Shackle is a high-quality drop forged shackle made in the USA. Designed for lifting and towing applications, it features a self-colored finish and heat-treated pins for durability. Safety shackles meet stringent federal specifications RR-C-271D Type IVA, ensuring reliability and strength. With a working load limit of 1/2 ton, this shackle is marked with size, trademark, and WLL for easy identification. Trust in Chicago Hardware for top-notch wire rope hardware.

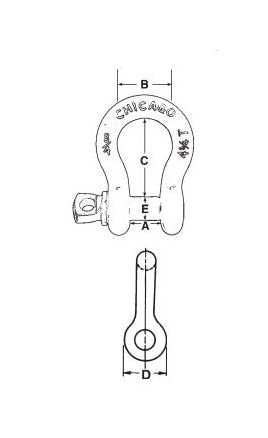

Product Specifications

Specifications Length C
1-1/8"
Specifications Length Tolerance
1/16"
Specifications Od Eyes D
3/4"
Specifications Pin Or Bolt Diameter E
5/16"
Specifications Size Dia
1/4"
Specifications Width Bow B
3/4"
Specifications Width Eyes A
15/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
1/2
Specifications Wt Per 100 Pcs Lbs
13.5
CAGE
0T9L4
NAICS
332999
PSC
5340
