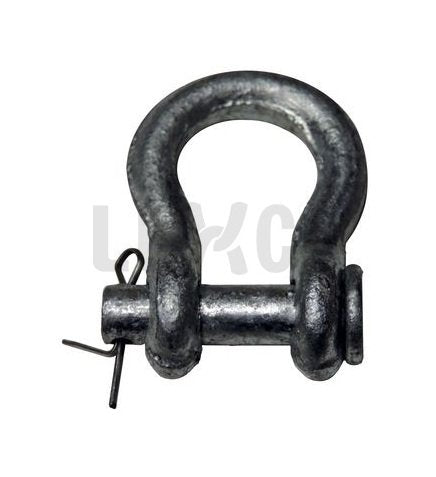

Chicago Hardware Round Pin Anchor Shackle

Name: Chicago Hardware Round Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-496c81
Price: 199.99 USD
Availability: OutOfStock

SKU:WIR-496c81

Chicago Hardware self-colored anchor shackle with marked load limit and high safety factor for durable lifting and towing applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Drop Forged Round Pin Anchor Shackle in self-colored finish offers exceptional durability and safety. Heat-treated shackles with a 6 to 1 safety factor, marked with size and load limit for easy identification. Meets Federal Specifications RR-C-271D Type IVA. Ideal for lifting and towing applications, ensuring reliability and performance in demanding environments.

Product Specifications

Specifications Length C

7/8"

Specifications Length Tolerance

1/16"

Specifications Od Eyes D

5/8"

Specifications Pin Or Bolt Diameter E

1/4"

Specifications Size Dia

3/16"

Specifications Width Bow B

9/16"

Specifications Width Eyes A

3/8"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

1/3

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Hardware Round Pin Anchor Shackle
