Chicago Hardware Round Pin Drop Forged Anchor Shackle

Chicago Hardware Round Pin Drop Forged Anchor Shackle

SKU:WIR-238747

Chicago Hardware Round Pin Drop Forged Anchor Shackle: High-quality wire rope hardware meeting Federal Specifications RR-C-271D Type IVA for industrial lifting and towing applications.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Chicago Hardware Round Pin Drop Forged Anchor Shackle

Chicago Hardware Round Pin Drop Forged Anchor Shackle

$299.99

Quantity: 1

Claim Your Seller Account

Chicago Hardware Round Pin Drop Forged Anchor Shackle

Chicago Hardware Round Pin Drop Forged Anchor Shackle

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

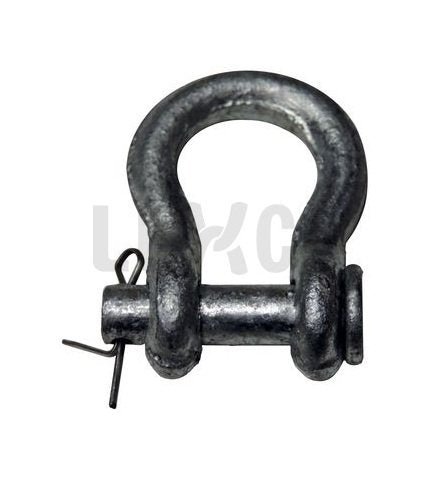

The Chicago Hardware Round Pin Drop Forged Anchor Shackle is a reliable wire rope hardware offering in self-colored or hot galvanized finish. Designed for lifting or towing, these shackles are heat treated and marked with size, working load limit, and trademark for easy identification. With safety shackles meeting Federal Specifications RR-C-271D Type IVA, these shackles ensure high performance and durability. Perfect for industrial applications requiring superior quality and strength.

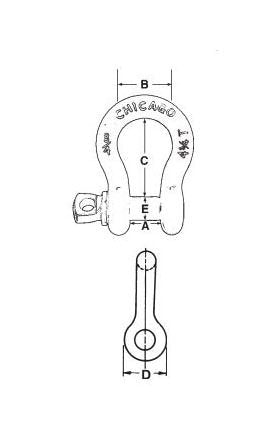

Product Specifications

Specifications Length C
3-1/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
2-1/8"
Specifications Pin Or Bolt Diameter E
1"
Specifications Size Dia
7/8"
Specifications Width Bow B
2-5/8"
Specifications Width Eyes A
1-7/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
6-1/2
Specifications Wt Per 100 Pcs Lbs
375
CAGE
0T9L4
NAICS
332999
PSC
5340
