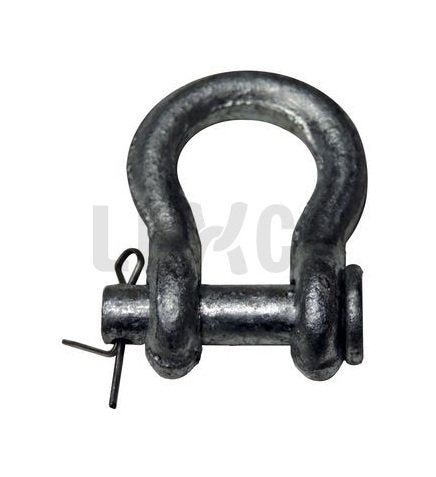

Chicago Hardware Round Pin Galvanized Anchor Shackle

Name: Chicago Hardware Round Pin Galvanized Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-22f141
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-22f141

Reliable Chicago Hardware Round Pin Galvanized Anchor Shackle for secure lifting and towing operations. Made in USA with premium materials.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Hardware Round Pin Galvanized Anchor Shackle is a reliable and durable wire rope hardware essential for lifting and towing operations. Made in the USA by Chicago Hardware & Fixture Company, this drop forged shackle is available in various finishes, with each shackle and pin heat treated for enhanced strength. Safety shackles meet stringent performance requirements of Federal Specifications RR-C-271D Type IVA, ensuring a high level of quality and safety. Marked with size, working load limit, and trademark for easy identification, this shackle is designed to withstand heavy loads with a safety factor of 6 to 1. Ensure your operations meet standards and stay secure with this premium anchor shackle.

Product Specifications

Specifications Length C

1-1/4"

Specifications Length Tolerance

1/16"

Specifications Od Eyes D

7/8"

Specifications Pin Or Bolt Diameter E

3/8"

Specifications Size Dia

5/16"

Specifications Width Bow B

15/16"

Specifications Width Eyes A

17/32"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

3/4

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332999

PSC

5340
