Chicago Hardware Round Pin Galvanized Anchor Shackle 1"
Chicago Hardware Round Pin Galvanized Anchor Shackle 1"
SKU:WIR-656dd7
Chicago Hardware Round Pin Galvanized Anchor Shackle - Made in USA, meets Federal Specifications, 8-1/2 tons WLL
Regular price
$145.99
Regular price
Sale price
$145.99
Unit price
per
Initiate Order
Chicago Hardware Round Pin Galvanized Anchor Shackle 1"
$145.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Round Pin Galvanized Anchor Shackle 1"
$145.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

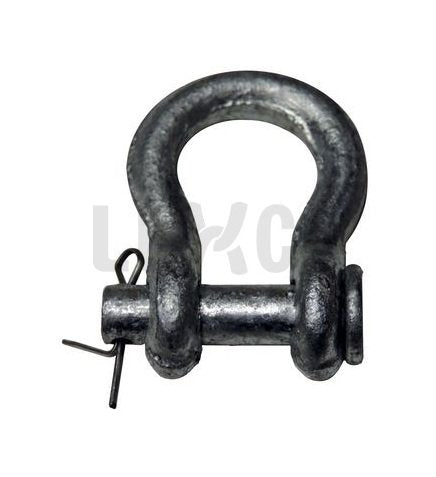

Enhance your lifting and towing operations with the Chicago Hardware Round Pin Galvanized Anchor Shackle. Made in the USA by Chicago Hardware & Fixture Company, this drop forged shackle is heat-treated, marked with size and working load limit, and meets Federal Specifications RR-C-271D Type IVA. With a working load limit of 8-1/2 tons and a safety factor of 6 to 1, this shackle ensures reliable performance. The Round Pin design ensures easy assembly and disassembly while maintaining secure connections, making it ideal for wire rope loops in various applications. Choose durability and compliance with this top-quality shackle.
Product Specifications
Specifications Length C
3-3/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes D
2-1/2"
Specifications Pin Or Bolt Diameter E
1-1/8"
Specifications Size Dia
1"
Specifications Width Bow B
2-3/4"
Specifications Width Eyes A
1-11/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
8-1/2
Specifications Wt Per 100 Pcs Lbs
537.5
CAGE
0T9L4
NAICS
332999
PSC
5340
