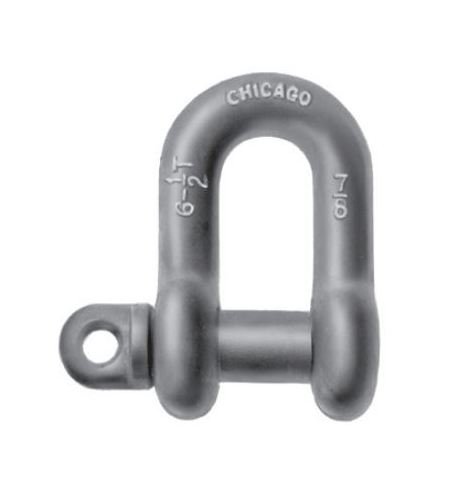

Chicago Hardware Screw Pin Self Colored Chain Shackle
Chicago Hardware Screw Pin Self Colored Chain Shackle
SKU:WIR-ba3f7c
Chicago Hardware Drop Forged Screw Pin Chain Shackle for reliable lifting and towing. Self-colored finish, heat treated, and marked for compliance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Hardware Screw Pin Self Colored Chain Shackle
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Screw Pin Self Colored Chain Shackle
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Drop Forged Screw Pin Chain Shackle in self-colored finish offers exceptional strength and durability. This shackle is heat treated, marked with size and working load limit, and meets Federal Specifications RR-C-271D Type IVA. With a working load limit of 8-1/2 tons and a safety factor of 6 to 1, this shackle is ideal for lifting and towing applications. Ensure compliance and quality with Chicago Hardware & Fixture Company's USA-made shackles.

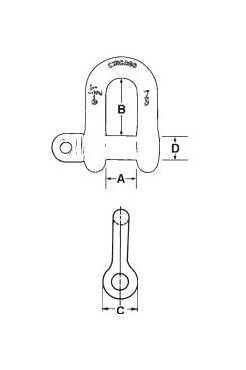

Product Specifications
Specifications Length B
3-1/4"
Specifications Length Tolerance
1/4"
Specifications Od Eyes C
2-1/2"
Specifications Pin Or Bolt Diameter D
1-1/8"
Specifications Size Dia
1"
Specifications Width A
1-11/16"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
8-1/2
Specifications Wt Per 100 Pcs Lbs
500
CAGE
0T9L4
NAICS
332999
PSC
5340
