Chicago Hardware Screw Thread Eye Bolts Shoulder
Chicago Hardware Screw Thread Eye Bolts Shoulder
SKU:WIR-af33e6
Chicago Hardware Screw Thread Eye Bolts Shoulder - Lag screw thread with cone points for cable assembly. Made in USA by Chicago Hardware & Fixture Company.
Regular price
$56.99
Regular price
Sale price
$56.99
Unit price
per
Initiate Order
Chicago Hardware Screw Thread Eye Bolts Shoulder
$56.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Screw Thread Eye Bolts Shoulder
$56.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware Screw Thread Eye Bolts Shoulder features a lag screw thread and cone points for secure cable assembly attachment. With a 1/4" x 2" diameter and shank length, 1" outside eye, and 1/2" inside eye, this bolt offers versatility and strength. Designed at 3-1/8" overall length, 7/16" outside shoulder, and 5/64" shoulder thickness, it ensures durability and reliability. Meeting stringent quality standards, this Made in USA product by Chicago Hardware & Fixture Company is ideal for various wire rope hardware applications.

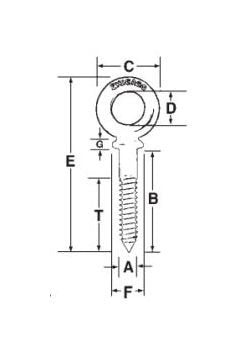

Product Specifications
Specifications Diameter A Shank Length B
1/4" x 2"
Specifications Inside Eye D
1/2"
Specifications Outside Eye C
1"
Specifications Outside Shoulder F
7/16"
Specifications Overall Length E
3-1/8"
Specifications Thickness At Shoulder G
5/64"
Specifications Thread Length T
1-1/2" "
Specifications Wt Per 100 Pcs Lbs
6.7
CAGE
0T9L4
NAICS
332722
PSC
5306
