Chicago Hardware Self-Colored Screw Pin Chain Shackle
Chicago Hardware Self-Colored Screw Pin Chain Shackle
SKU:WIR-10a45e
High-quality self-colored screw pin chain shackle meeting federal specifications RR-C-271D Type IVA. Designed in the USA for secure wire rope lifting/towing.
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

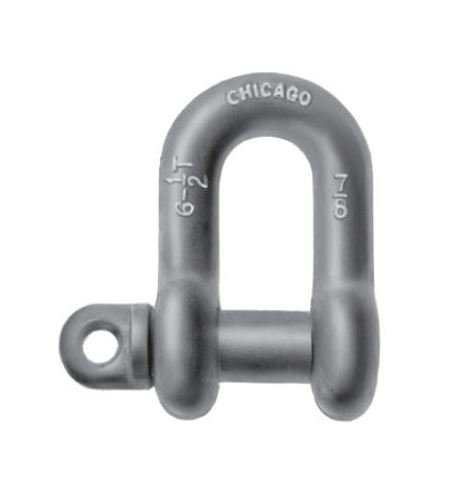

The Chicago Hardware Self-Colored Screw Pin Chain Shackle is a top-quality drop forged shackle made in the USA. It features a self-colored finish, heat-treated pins, and a safety factor of 6 to 1, meeting federal specifications RR-C-271D Type IVA. This shackle is designed for wire rope loops, with permanent markings for size, working load limit, and trademark. Ensure reliable lifting or towing operations with this high-performance, compliant shackle.

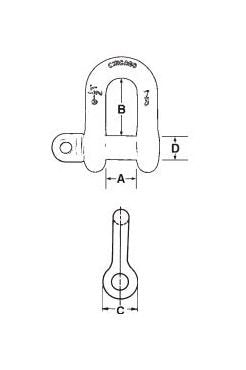

Product Specifications
Specifications Length B
1"
Specifications Length Tolerance
1/16"
Specifications Od Eyes C
7/8"
Specifications Pin Or Bolt Diameter D
3/8"
Specifications Size Dia
5/16"
Specifications Width A
17/32"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
3/4
Specifications Wt Per 100 Pcs Lbs
20
CAGE
0T9L4
NAICS
332999
PSC
5340
