Chicago Hardware Self-Colored Threaded Lifting Eye Bolt

Name: Chicago Hardware Self-Colored Threaded Lifting Eye Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-fc7004
Price: 25.99 USD
Availability: OutOfStock

SKU:WIR-fc7004

Chicago Hardware Self-Colored Threaded Lifting Eye Bolt, C-1035 steel forged construction with 3600 lbs WLL for secure lifting applications.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

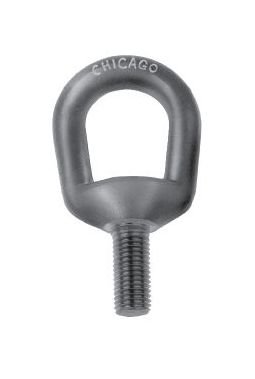

The Chicago Hardware Self-Colored Threaded Lifting Eye Bolt is drop forged from C-1035 steel, heat treated for durability. This lifting eye features a bail size of 1/2", with a Working Load Limit (WLL) of 3600 lbs. It can be used in lifting applications requiring larger eyes, with options for blank or threaded finishes. Designed for straight vertical lifts with a safety factor of 5 to 1, ensuring secure and reliable performance. Prefix stock number with 'B' for blank or 'T' for threaded when ordering. Made in the USA by Chicago Hardware & Fixture Company.

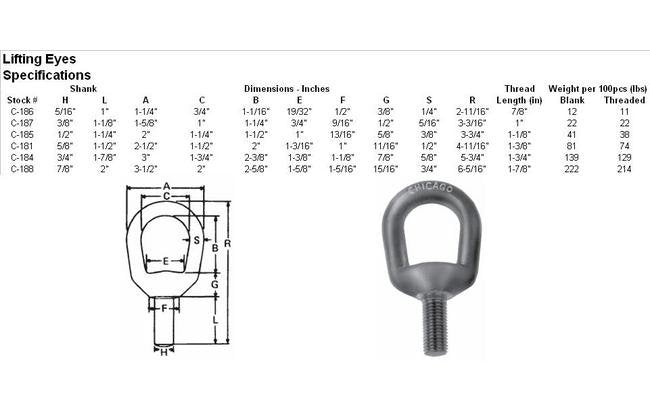

Product Specifications

Specifications Bail Size In

1/2"

Specifications Stock

C-181

Specifications Wll Lbs

3600

CAGE

0T9L4

NAICS

332722

PSC

5306
