Chicago Hardware Self Colored Turnbuckle
Chicago Hardware Self Colored Turnbuckle
SKU:WIR-e9c01c
Premium USA-made Self Colored Turnbuckle with ASTM F1145-92 Type 1 Grade 1 compliance. Durable, reliable, and high WLL.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Chicago Hardware Self Colored Turnbuckle
$139.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Self Colored Turnbuckle
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

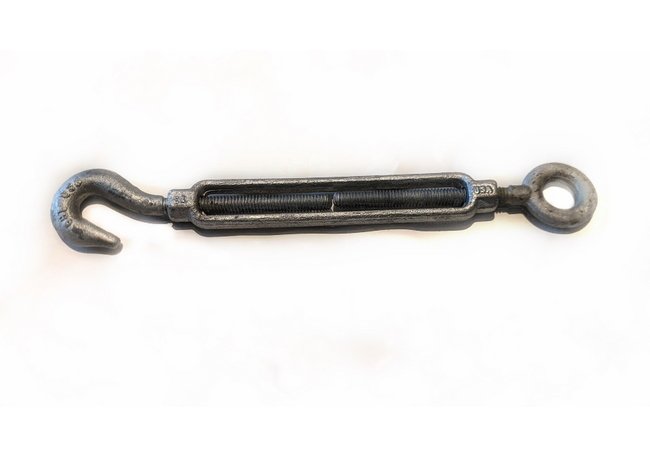

The Chicago Hardware Self Colored Turnbuckle is a premium wire rope hardware designed to meet the demanding performance requirements of ASTM Specification F1145-92 Type 1 Grade 1. Made in the USA, this durable turnbuckle features heat-treated eye, jaw, and hook fittings, ensuring reliability and strength. Available in 3/4" diameter with a 12" take-up, it offers a closed length of 22-1/8". With a Working Load Limit (WLL) of 3000 lbs for the hook and 5200 lbs for the eye, this turnbuckle is a trusted choice for industrial applications.

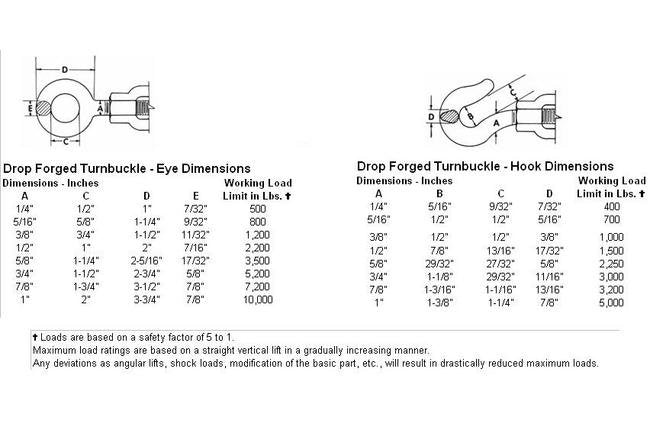

Product Specifications
Specifications Closed Lengths In
22-1/8"
Specifications Diameter Take Up
3/4" x 12"
Specifications Eye Wll
5200
Specifications Hook Wll
3000
Specifications Wt Per 100 Pcs Lbs
581
