Chicago Hardware Shoulder Eye Bolt
Chicago Hardware Shoulder Eye Bolt
SKU:WIR-adac9d
Durable Chicago Hardware Machinery Eye Bolt for secure cable attachments. Made in USA.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Hardware Shoulder Eye Bolt
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware Shoulder Eye Bolt
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

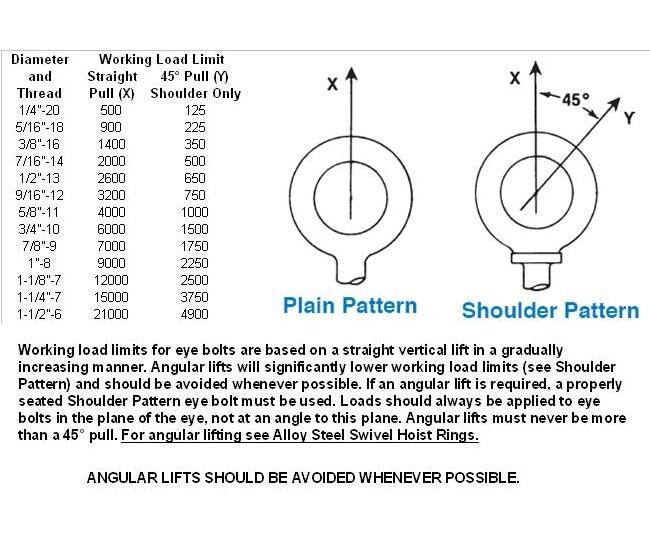

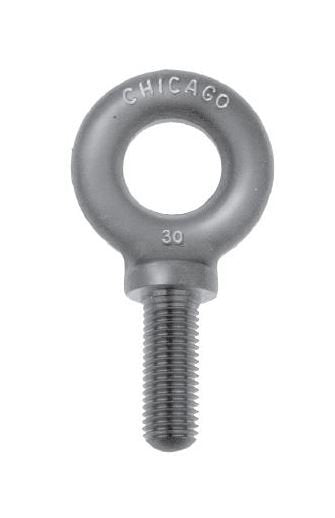

The Chicago Hardware Machinery Eye Bolt with Standard Shank Lengths and Shoulder Pattern is a durable and reliable wire rope hardware essential. Made in the USA, this eye bolt features an inner diameter of 2-3/16" and an outer diameter of 4-7/16". With a maximum shank length of 3" and a shank diameter/thread size of 1-1/4"-7, it has a working load limit of 15,000 lbs. Designed for vertical loads with a 5 to 1 safety factor, this eye bolt ensures secure attachments for various applications.
Product Specifications
Specifications Id Eye
2-3/16"
Specifications Max Lengths
3"
Specifications Od Eye
4-7/16"
Specifications Overall Length In
8-1/2"
Specifications Shank Dia Thread Size
1-1/4"-7
Specifications Shank Length
3"
Specifications Wll Lbs
15000
CAGE
0T9L4
NAICS
332722
PSC
5306
