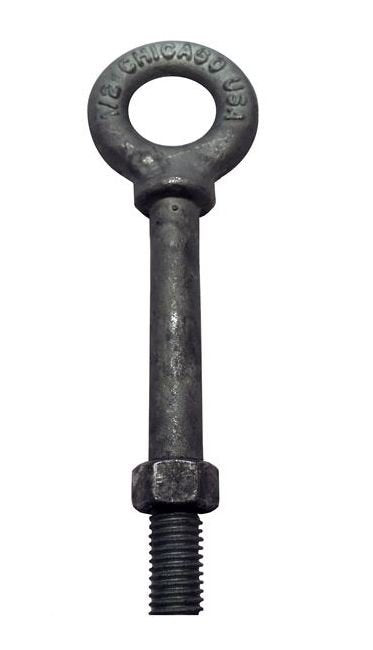

Chicago Hardware USA Drop Forged Eye Bolt Machine Thread 3/8" x 4-1/2"

Name: Chicago Hardware USA Drop Forged Eye Bolt Machine Thread 3/8" x 4-1/2"
Brand: Lexco Cable Manufacturing
SKU: WIR-89ab9a
Price: 399.99 USD
Availability: OutOfStock

SKU:WIR-89ab9a

Reliable Chicago Hardware USA Drop Forged Eye Bolt for secure rigging applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your rigging setup with our Chicago Hardware Drop Forged Eye Bolt, featuring heat-treated steel construction, hot galvanized finish, and a safety factor of 5 to 1. Designed for direct tension pulls, this machine threaded eye bolt ensures reliability and durability in various applications. With precise dimensions and high load capacity, it meets stringent industry standards for performance and safety. Customize with special shank lengths for your specific needs.

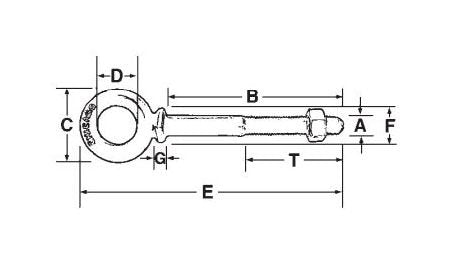

Product Specifications

Specifications Diameter A Shank Length B

3/8" x 4-1/2"

Specifications Inside Eye D

3/4"

Specifications Outside Eye C

1-1/2"

Specifications Outside Shoulder F

11/16"

Specifications Overall Length E

6-1/4"

Specifications Thickness At Shoulder G

1/8"

Specifications Thread Length T

2" "

Specifications Wll Lbs

1200

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
